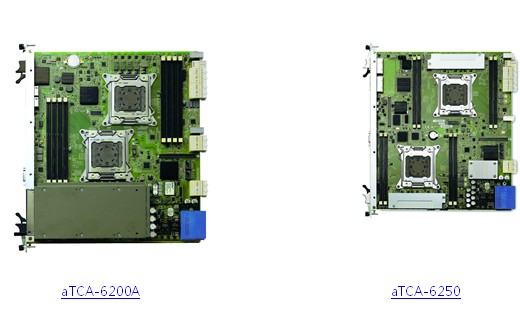

ADLINK, the industry leader in embedded computer products and intelligent computer application platforms (ApplicaTIon Ready Intelligent Platforms), released enhanced AdvancedTCA® (ATCA) processor blades aTCA-6250 and aTCA-6200A. The aTCA-6250 and aTCA-6200A processor blades have powerful computing performance, high-throughput connections and accelerated packet processing performance. The aTCA-6250 and aTCA-6200A are equipped with two 10-core Intel® Xeon® E5-2658 v2 and E5-2648L V2 (2.4 GHz / 1.9 GHz) processors and Intel® C604 chipset (formerly codenamed "Romley Refresh"). aTCA-6250 and aTCA-6200A provide unique performance, very suitable for high-performance computing, reliability and network / storage throughput of carrier-grade applications, such as IPTV, IP Multimedia Subsystem (IMS) broadband network, network security, network monitoring / Analysis and wireless infrastructure etc.
"The enhanced ATCA processor blades we provide are specifically designed for NEBS compatibility, and can provide telecommunications equipment manufacturers and network equipment providers with a powerful performance and high bandwidth solution, which is very suitable for mission-critical applications and provides Seamless upgrade and future growth. "Said Luo Yong, general manager of ADLINK ’s Embedded Computing Products Division:" By supporting Intel® Hyper-Threading Technology and Intel® Turbo Boost Technology, the updated Intel® Xeon® processor and The Intel® C604 chipset, whether it is a single-threaded or multi-threaded workload, can provide higher performance while maintaining the existing cooling and power efficiency. "
"ADLINK's ATCA blades are equipped with the latest Intel® Xeon® E5-2658 v2 and E5-2648L v2 processors, providing integrated memory controllers and 2 Intel® QuickPath (Intel® QuickPath, Intel® QPI) point-to-point connections Interface. Intel® QPI provides higher bandwidth for processor-to-processor connections, up to 8GT / s. "Frank Schapfel, senior product manager, Intel® Communications Infrastructure, said:" By supporting Intel® Hyper-Threading Technology And Intel® Turbo Boost technology, Intel® Xeon® E5-2658 v2 and E5-2648L v2 processors, whether single-threaded or multi-threaded workloads, the same power efficiency can provide greater performance. "
The updated aTCA-6250 processor blade provides 8 DDR3-1866 memory channels, supports a maximum of 128GB of memory, and a 400W power subsystem can meet the maximum computing performance. At the same time, aTCA-6250 also provides rich connections, including two 10GbE Fabric interfaces, two GbE Base interfaces, four GbE interfaces on the front panel, two USB and COM interfaces on the front panel, and onboard SATA DOM plug groove. The optional aTCA-R6270 rear routing module (RTM) is equipped with two 10GbE ports and two hot-swappable SAS slots to provide additional network throughput and storage space.
The aTCA-6250 also supports the Intel® Data Plane Development Kit (Intel® DPDK). The DPDK provides an ultra-lightweight real-time environment for processors based on the Intel® architecture, with the lowest overhead and run-to-compleTIon mode. Improve the package processing performance to a minimum. The aTCA-6250 also supports Intel® QuickAssist acceleration technology. By loading tasks to the optional mezzanine card of the aTCA-6250, CPU resources are released, thereby providing additional optimization of packet and network performance.
The updated version of aTCA-6200A supports DDR3-1866 memory, up to 128GB. In order to provide flexible expansion requirements, aTCA-6200 also provides a medium-sized AMC slot that supports the PICMG® standard, which can support AMC.1 PCI Express and advanced switching, AMC 2 Gigabit Ethernet, and AMC 3 SATA / SAS storage expansion . The connection provided by aTCA-6200A includes 2 10GBASE-KX4 Fabric interfaces, 2 GbE Base interfaces, 2 GbE external interfaces on the front panel, onboard CFast slot to support boot, built-in 2.5 "SATA hard disk space, and modules Fabric adapter card to support additional PICMG® Fabric interface protocol. The optional aTCA-R6270 rear trace conversion module (RTM) contains two hot-swappable SAS slots to provide additional networks Throughput and storage space. ATCA-6200A provides high-speed data transmission through the onboard PICMG 3.1 I / O interface (including Base interface channel, Fabric interface channel and external ports located on the front panel / rear panel). Front panel I / O interface Including 2 RJ-45 GbE ports, 3 USB 2.0 ports, 1 RJ-45 to DB-9 standard serial port and 1 DB-15 interface for analog display output.
