Shang hai Xiaowei Equipment Co., LTD (Xiaowei) was established in 2011, Shanghai, which is a company covering cable and accessories manufacturing, real estate, engineering service and investment &trading.
    As a National wide wire &cable supplier Xiaowei continually provide different quality products in the telecom communication fields, the main product is 7/8 feeder cable, 1/2 feeder cable, feeder claim, feeder tools, all kind of the male, female, DIN, connector feeder connector, feeder grouding kit, grounding bar, low loss 7/8 jumper cable and 1/2 jumper cable, indoor optic jumper cable and outdoor fiber cable, splitter and coupler, Dual and trible band antanna, GPS antenna and GPS cable all the accessories in the telecom field. Xiaowei also supply VHF vabor phone, WLAN system.
     Xiaowei have advance manufacturing product line, stanard factory, we have long co-operation with the Chinese main telecom operators such as China Mobile, China Unicom, China Telecom. And the electric power operator such as National Electric network company, Southern Electric power company. Xiaowei provides total solution for telecommunication, power grid, railway, engineering, green energy, automobile industries, etc.
        Xiaowei particularly focused on the QoS and creating value for its clients and stakeholders, continuously invest in R&D, marketing & service networks, meeting and exceeding the precise needs of our customers national wide. With the develop of the business, Xiaowei extend the service to the international trading.
Â
RG-58U Cable Assemblies / Assembly
Applicable for connecting feeder cables with 8TS equipment and antenna, unnecessary of additional waterproof measures, such as waterproof gel or tape, meets waterproof standard IP68.
Standard lengths: 0.5m, 1m, 1.5m, 2m, 3m, customer special requiremnts on jumper length could be satisfied.
Characteristics & Applications
Electrical Spec. | ||
Vswr | ≤ 1.15 (300MHz-2500GHz) | |
Dielectric withstanding vlotage | ≥1000V | |
Dielectric resistance | ≥5000MΩ(500V DC) | |
PIM3 | ≤ -138dBc@2x30W | |
 Operating temperature | - 40oC ~ + 85oC | |
Insert loss | It depends on leghth of cable | |
Weatherproofing standard | IP68 | |
Cable length | Customized | |
Jacket | Â Heat shrink tubing | |
Connector applicable | N Type | DIN Type |
SMA | / |
Structure and performance parameters | ||||
  RG58 Cable |  Connector | |||
Material | Inner conductor | Tin plated copper wire (Φ19x0.18mm) | Inner conductor | Brass, tin phosphorus bronze, tinnedt, hickness≥3μm Orichalum plating, hickness ≥0.2μm |
Dielectri material | Polyethylene (Φ2.95mm) | Dielectri material | PTFE | |
Outer conductor | Tin plated copper wire braid (Φ3.45mm) | Outer conductor | Brass, tri-alloy plated, thinkness≥2μm | |
Jacket | FPE/PE/PVC(Φ4.95mm) | Nut | / | |
Color | Customized | Sealing ring | / | |
Electrical and Mechanical Spec. | Characteristic impedance | 50Ω | Characteristic impedance | 50Ω |
Vswr | ≤ 1.15(DC-2500GHz) | Vswr | ≤ 1.15(DC-2500GHz) | |
Standard capacity | 101.05 pF/m | Frenquency | DC-11GHz | |
Velocity | 66% | Dielectric withstanding voltage | ≥2500V | |
Attenuation | ≥120 (dB) | Contact resistance | Inner conducter ≤ 5.0mΩ Outer conducter≤ 2.5mΩ |
|
Insulation resistance | ≥5000MΩ | Dielectric resistance | ≥2500MΩ, 500V DC | |
Peak voltage | 1.13KV | Durability | ≥500 | |
Peak power | 40KW | Pim3 | ≤ -155dBc@2x20W |
Detailed Images
Â
Packing & Delivery
Packing by Reels
The wood or plywood reels will be used, when the length of cable is more than 300m.Â
Packing by Paper Boxes
The paper boxes will be used, when the length of cable isn't more than 300m.Â
Â
For more information, please feel free to contact us!!Â
Â
Shenzhen Bolinia Technology Co., Ltd. 15.6 Inch All In One Touch PC with two resolution for options: 1366*768 or 1920*1080p.
Main data as below:
Model: B156A-ART
Parameters:
1. Display: 15.6 inch Projected Capacitive Touch Screen
2. Aspect Ratio: 16:9
3. Max. Resolution: 1366 * 768
4. Dot Pitch: 0.252×0.252 mm
5. Contrast Ratio: 600:1
6. Brightness (nits): 250
7. Display Color (Max): 16.7M
8. Viewing angel:75º/75º/60º/45º
9. OSD language: English
10. Configuration:A64 Main board,RAM: 1G (Standard); ROM: 8G (Standard)
11. Ethernet port: 10/100M adaptive RJ45 port*1
12. USB port: USB HOST*2 (Main board*1; Mini board *1); USB OTG*1
13. Input power:110~240V 50HZ/60HZ
14. Rated power:<50W
15. Assembling: Bracket (Standard)
Optional:
Mainboard: A83
RAM: 1G (2 GB, 4GB optional)
ROM: 8G (16GB, 32GB optional)
Built-in high fidelity speaker(8Ω5W*2)
Camera: 500M pixel (Wide viewing angel)
Assembling: VESA wall mount

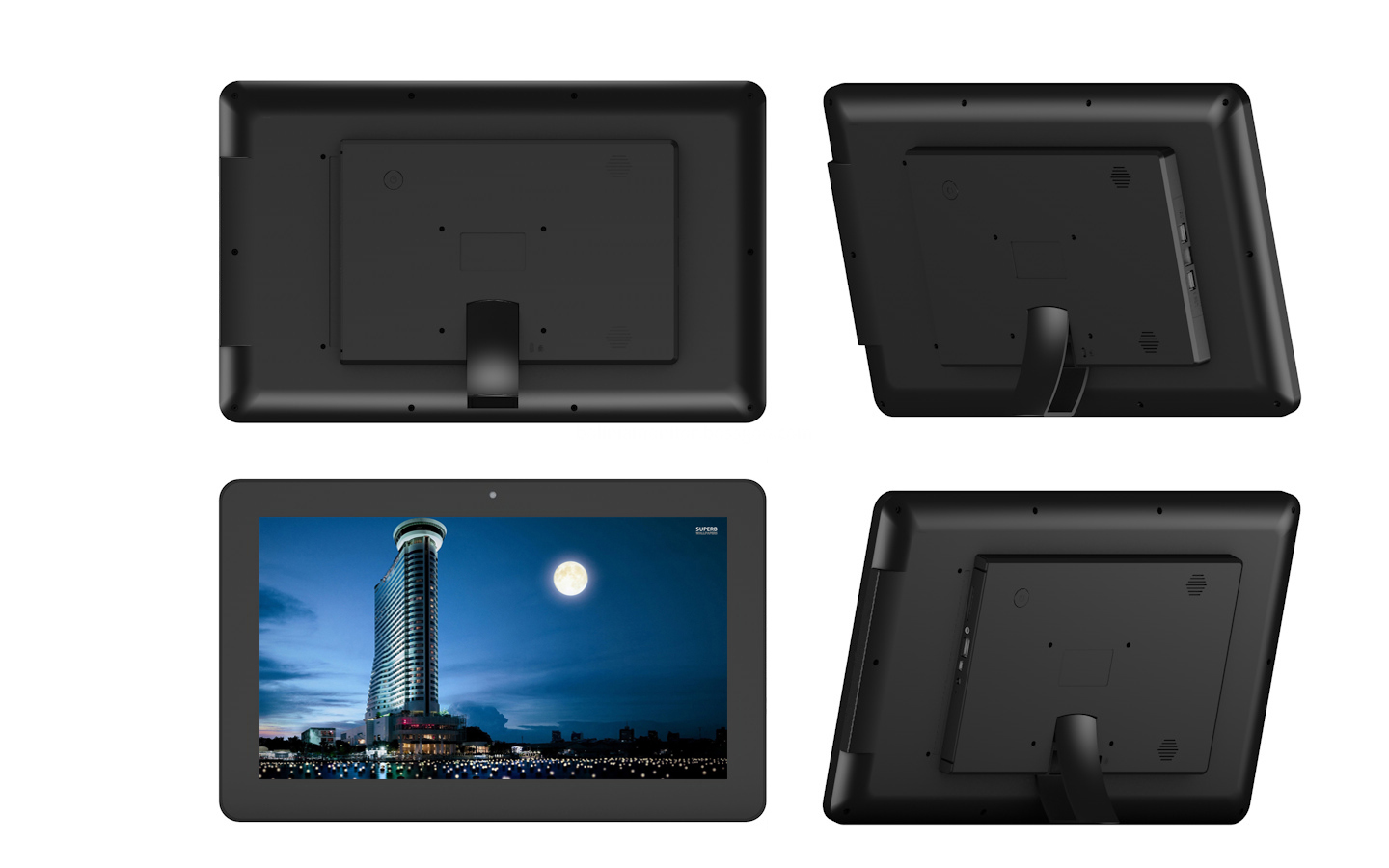

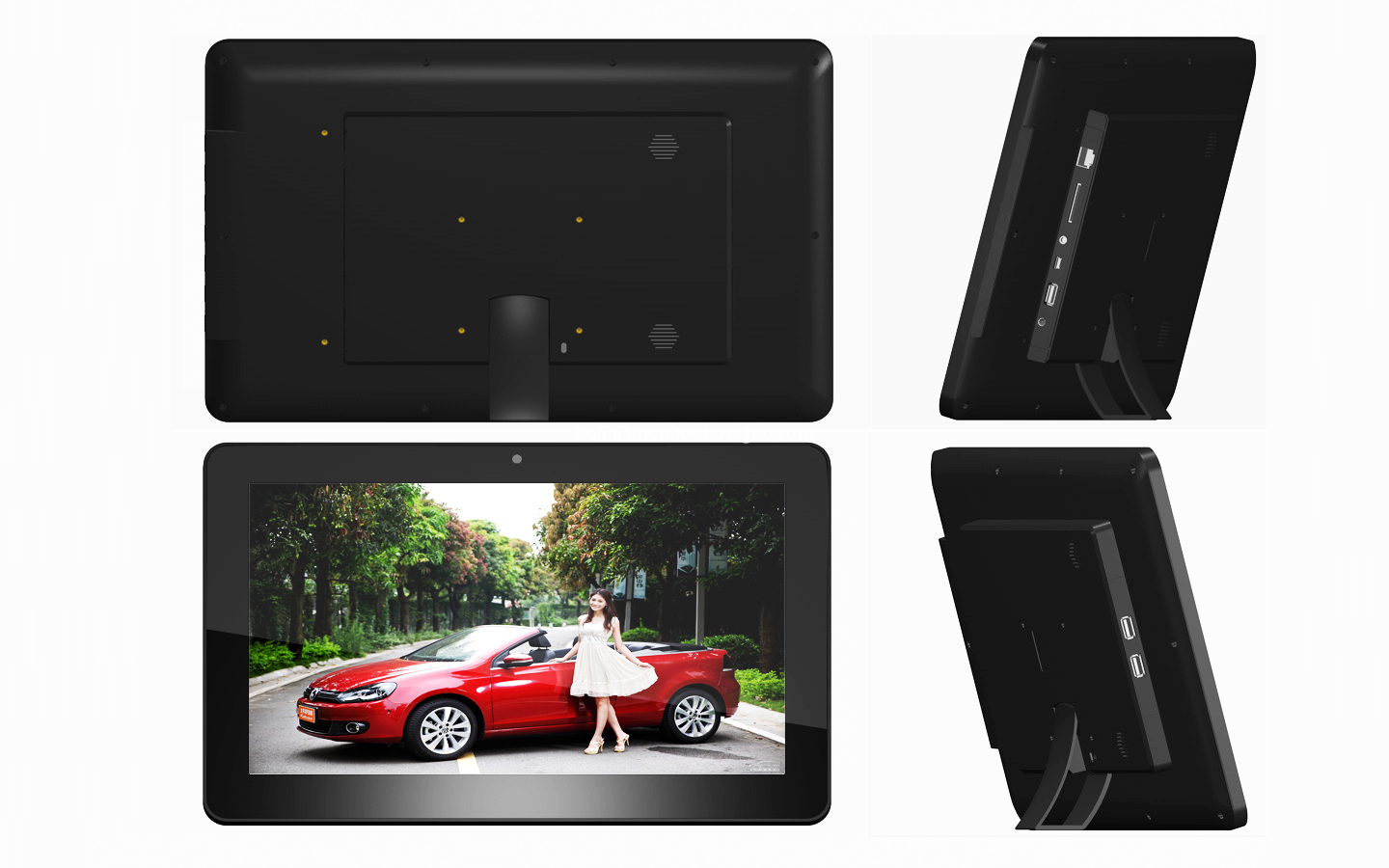

Model: B156B-ART
Parameters:
1. Parameters: Display: 15.6 inch Projected Capacitive Touch Screen
2. Aspect Ratio: 16:9
3. Max. Resolution: 1920 * 1080
4. Dot Pitch: 0.179 *0.179 mm
5. Contrast Ratio: 800:1
6. Brightness (nits): 350
7. Display Color (Max): 16.7M
8. Viewing angel:89º/89º/89º/89º
9. OSD language: English
10. Configuration:A64 Main board,RAM: 1G (Standard); ROM: 8G (Standard)
11. Ethernet port: 10/100M adaptive RJ45 port*1
12. USB port: USB HOST*2 (Main board*1; Mini board *1); USB OTG*1
13. Input power:110~240V 50HZ/60HZ
14. Rated power:<50W
15. Assembling: Bracket (Standard)
Optional:
Main board: A83
RAM: 1G (2 GB, 4GB optional)
ROM: 8G (16GB, 32GB optional)
Built-in high fidelity speaker(8Ω5W*2)
Camera: 500M pixel (Wide viewing angel)
Assembling: VESA wall mount
Shenzhen Bolinia Technology Co., Ltd. is a manufacturer for 7-24 inch lcd monitors and displays over 10 years. Original factory with assembling line in Shenzhen. Product ranges from plastic monitor, Metal Monitor , resistive touch monitor, Capacitive Touch Monitor, Open Frame Monitor , Embedded Monitor to SDI broadcasting monitor. Square monitor or wide screen monitors are available with different resolutions. Newly launched 10.1-32 inch All in One PC and portable LCD monitors.
Plastic or metal casing monitor from 7 inch to 24 inch.
Single Touch Monitor with resistive 4 wire and 5 wire for options from 7 inch
to 22 inch.
Multi-touch projected capacitive touch ( PCAP Touch or PCT) monitor from 8 inch
to 24 inch.
SDI monitor from 15 inch to 21.5 inch.
High Brightness Monitor from 10 inch to 22 inch.
Mirror Image Monitor with size: 8 inch, 9.2 inch, 10.4 inch, 12.1 inch, 15 inch, 17 inch, 19 inch, 20.1 inch and 22 inch.
All In One PC with Android system with 10.1 inch, 13.3 inch, 15 inch, 15.6 inch, 18.5 inch, 21.5 inch, 23.6 inch, 24 inch, 27 inch and 31.5 inch.
Portable LCD Monitor with 12.5 inch, 13.3 inch and 15.6 inch.
Products mainly used in ATM, POS, CCTV security, Information checking, Kiosk,
BGA repairing station, Lottery terminals, microscopes and similar applications. Portable LCD monitors perfectly compatible to PS4/PS3/PS2/Xbox ONE/Xbox 360, game consoles,
PCs, Macs, Raspberry Pi, laptops, cameras and tablets.
15.6 Inch All in One Touch PC
Projected Capacitive Touch PC, 15.6 Inch 1080P PC, FULL HD PC, 15.6 Inch Touch PC, All in One PC
Shenzhen Bolinia Technology Co., Ltd. , http://www.bolinia.com
