TPS54340 Reference Design Circuit | Step-Down DC-DC Converter Application Circuit

The TPS54340 is a 42V input 3.5A step-down DC/DC converter with an integrated high-side MOSFET. This article mainly introduces the TPS54340 features, application range, reference design circuit and circuit analysis to help you shorten the design time.

TPS54340 features: integrated high-side MOSFET; pulse skip Eco mode; fixed or adjustable switching frequency from 100kHz to 2.5MHz; internal soft start

Typical application range of TPS54340: 12V, 24V and 48V industrial, automotive and communication power systems

TPS54340 reference design application circuit:

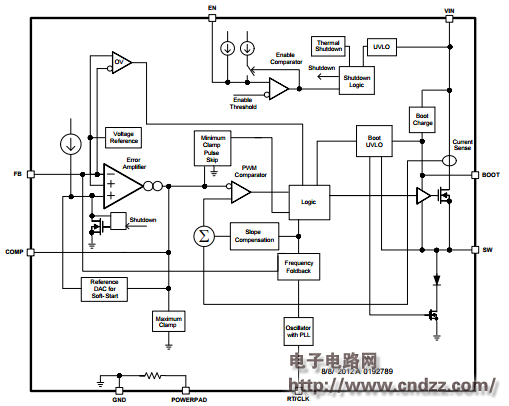

Figure 1 TPS54340 internal structure diagram

The device survives load dump pulses up to 45 V per ISO 7637. Current mode control provides simple external compensation and flexible component selection. The TPS54340 is a 42 V, 3.5 A, step down regulator with an integrated high side MOSFET.

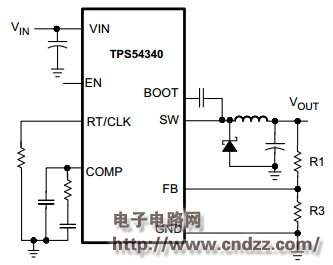

Figure 2 TPS54340 reference design

TheTPS54340 is a 42 V, 3.5 A, step-down (buck) regulator with an integrated high side n-channel MOSFET. The device implements constant frequency, current mode control which reduces output capacitance and simplifies external frequency compensation.

TPS54340 Chinese data sheet: Click to download

More schematics and source code popular application circuit: click now
