On May 15th, Beitong BETOP, the leading brand of domestic gaming peripherals, launched a professional e-sports game controller in Tmall, Taobao and Jingdong – Beitong Ashura 2. It locates the e-sports battle, through the high-end esports hardware configuration, adopts the imported XD4+ game engine independently developed by Beitong, helping users to win the game in 0.1 seconds.
After several twists and turns, the author finally got an Ashura 2 wireless version of the handle. Below, follow the author to a wave of devastating disassemble evaluation, to see how many gods in the e-sports costume Asura 2 in the end.

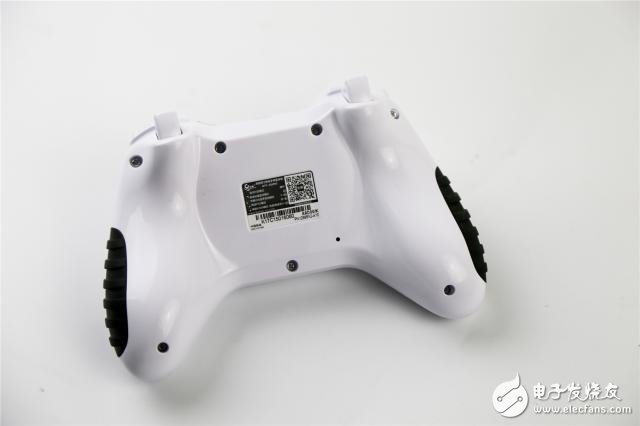

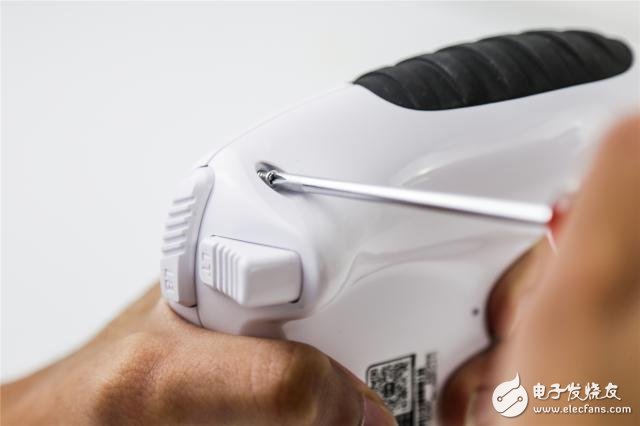

The Ashura 2 adopts the Xbox architecture, with a high-gloss face, black and white classic color, and red orange, blue and green four-color lighting, making the handle design simple and stylish. The back of the handle is fixed by 7 screws. Although there are a lot of holes, it improves the reliability of the handle and guarantees the e-sports.

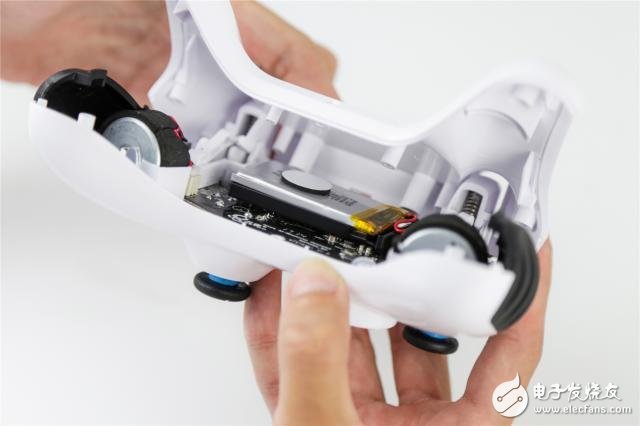

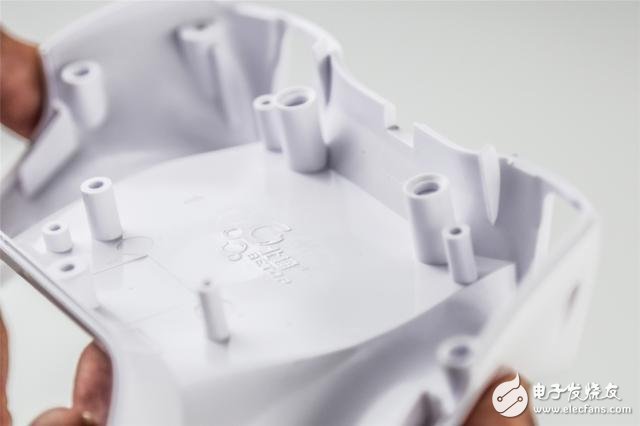

Remove the screws, the back shell can be removed directly from the bottom up, no parts are fixed on the back shell, which provides great convenience for production assembly.
overall arrangement

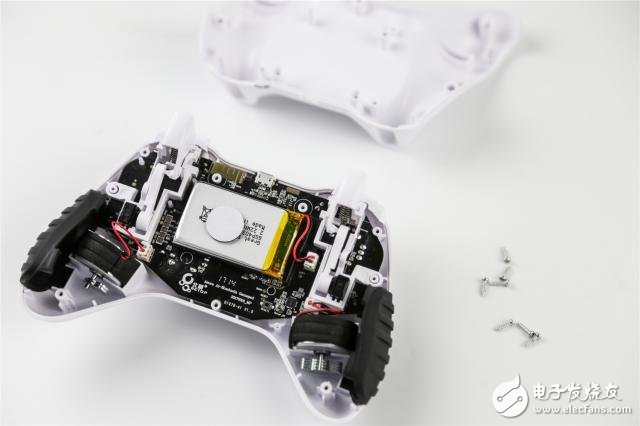

The moment I opened the back shell, the author was shocked. The dark black 1.6mm FR4 glass fiber immersion gold circuit board visually shows the high end of the hardware. In the middle of the circuit board, a battery holder supports the battery, and two linear trigger structures are arranged symmetrically on the left and right sides. The asymmetric vibration motor is connected through the segment sub-joints, and is uniform and uniform, without any disorder and redundancy.
Beitong's brand maintenance awareness has been very strong. The Beitong LOGO is directly engraved on the shell mold, which is perfectly different from some cottage inferior handles. It establishes a big factory style and gives consumers the most solid guarantee.
Overmolded grip

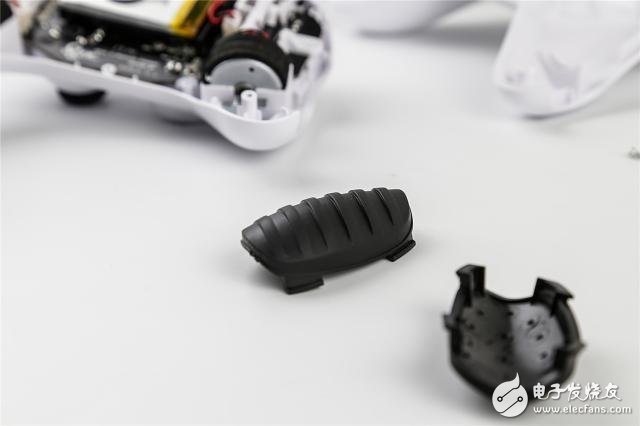

According to the reverse assembly sequence, the first step is to disassemble the grip. The grip rubber is made by double injection molding. The hard rubber uses ABS material as the skeleton to increase the strength, and then the TPU soft rubber material is over-molded to improve the grip feeling. From a rubberized package, it can be seen that the high quality of Beitong's molds, the uniformity of secondary injection molding and the leakage control are among the industry leading levels.
4:2 asymmetric somatosensory vibration motor

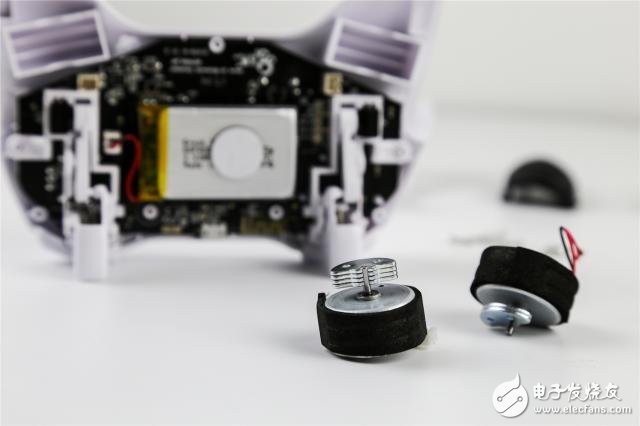

Remove the left and right rubber and pull out the terminal fittings, and the vibration motor can be easily taken out from the fixing groove. Due to the difference in the number of vibrating pieces of the two motors and the control of the motor speed and frequency by the chip, dozens of vibration effects are formed. In order to remove the noise caused by motor vibration, Beitong engineers intimately added a sponge to the motor to fix the fuselage.
600 mAh lithium battery

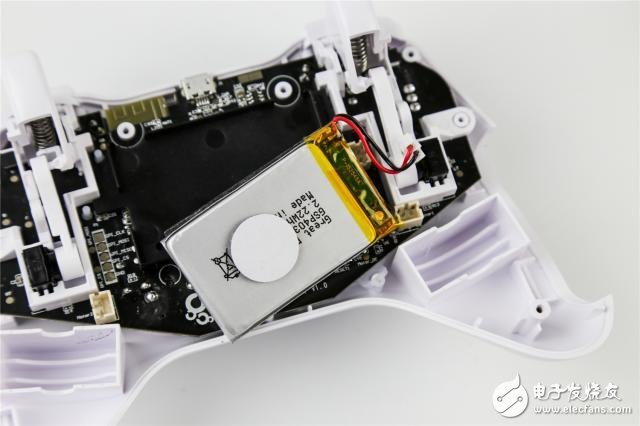

In the middle of the board, a 600 mAh lithium battery is supported by a battery holder. The official of Beitong said that in the normal game state, the handle can continue to work for 30 hours, even if the two motors simultaneously set the speed to the fastest state, it can support 3.5 hours. Yes, the vibration bar lasting 3.5 hours is very enjoyable.

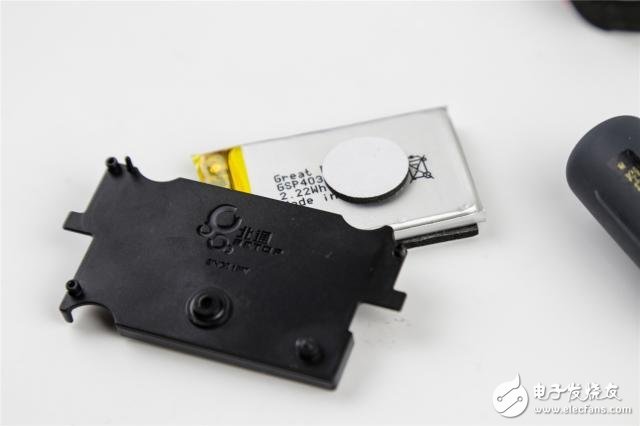

For a battery, specializing in opening a set of molds to make a battery rack, Beitong does not hesitate to give the best esports experience to users. On the back of the battery rack, it is also deeply deep in the Beitong LOGO, and "SINCE 1997", highlighting the 20 years of Beitong's ingenuity and brand precipitation.
1.6mm FR4 glass fiber immersion gold circuit board

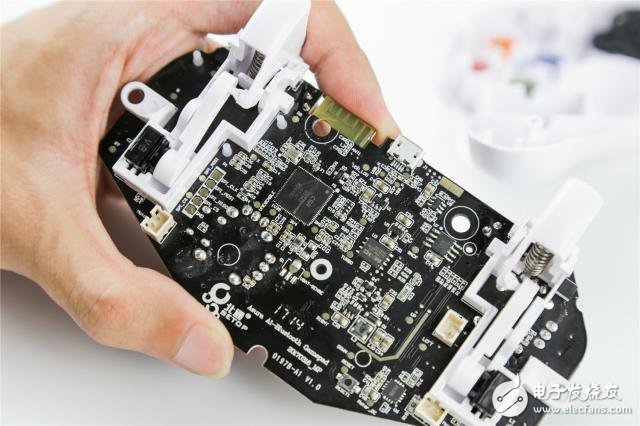

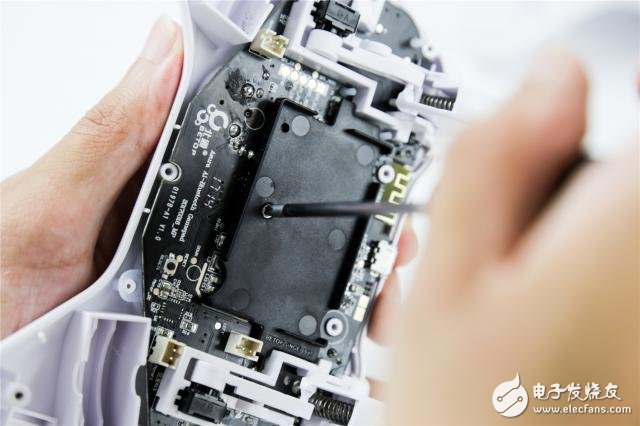

Unscrew the only screw inside and remove the battery holder. The beautiful circuit board can finally be held in your hand. 1.6mm dark black FR4 glass fiber immersion gold circuit board, such a high quality and high value circuit board, is also extremely rare in the peripheral industry, even the Xbox one handle is also a 1.2mm green circuit board.
As we all know, Xbox one and PS4 handles require 2-3 boards inside, other domestic handles need 4-5 boards, and Ashura 2 lays out hundreds of components on a single board. I am very shocked by this extreme circuit design.
CSR Bluetooth chip

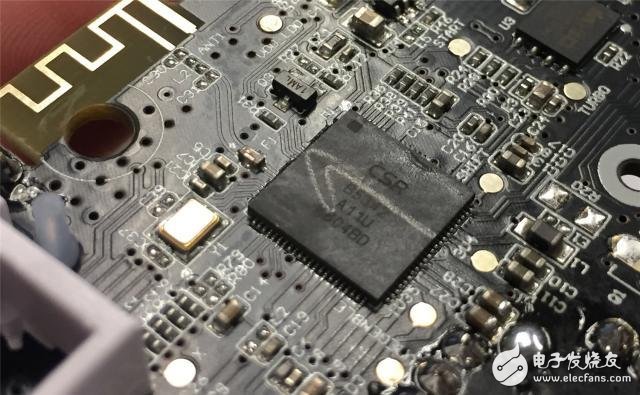

A chip lies quietly in the middle of the board. It is the CSR Bluetooth chip from the world's top CSR company. Ultra-low power consumption, best RF performance, it is this powerful heart that gives the core protection of the professional repair of the Ashura 2 handle.
256-step linear trigger

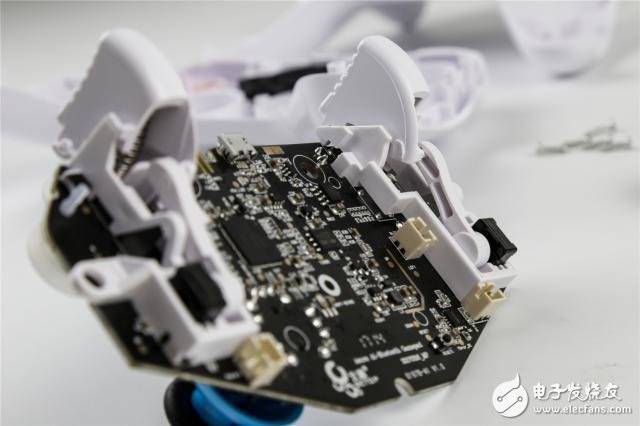

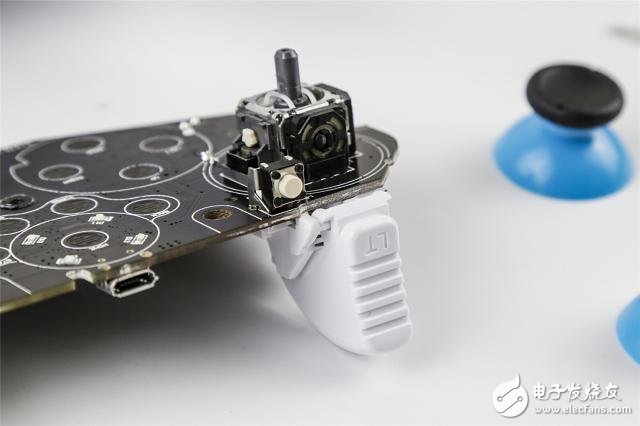

Two magnificent LT/RT linear trigger structures are carried on both sides of the board. The Ashura 2 handle uses a Japanese Noble linear potentiometer, which is small and precise. It contains 256 key-value outputs within a 30° rotation range. Through the pendulum structure, the engineers of Beitong will physically amplify the tiny rotation of the potentiometer, and cooperate with the elastic feedback of the spring to perfectly enhance the feel and give the player the most direct control experience.
ALPS eSports joystick

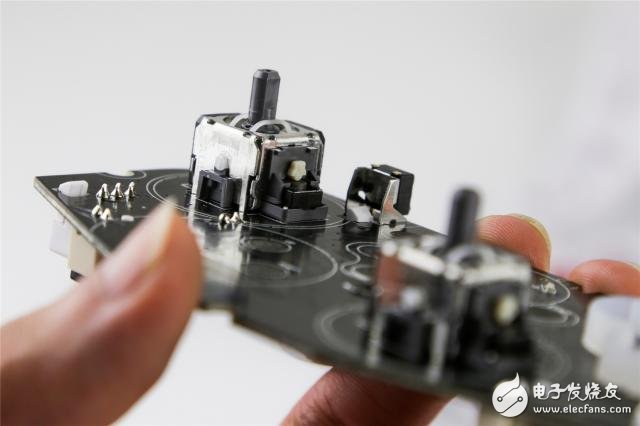

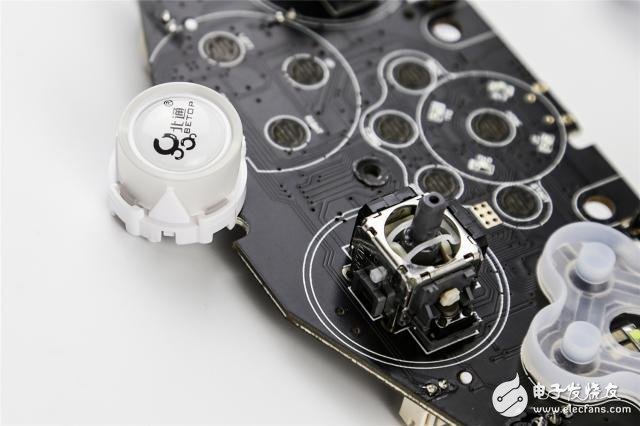

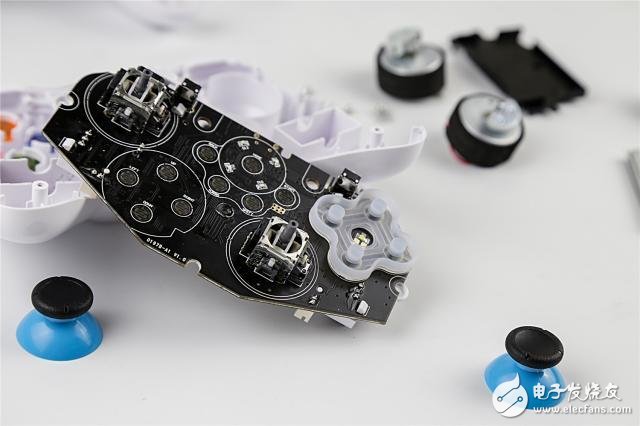

Turning the board over, the two sky blue rocker caps are straightforward, and underneath it is the main part of the Ashura 2 handle - the Japanese ALPS Athletic Rocker. This rocker is the highest configuration in the industry, with the Xbox ONE handle, the joystick of the PS4 handle, 7.2ms signal transmission speed, 0.1° precision swing, 2.5px precise fine-tuning, providing the most advanced control experience for e-sports players. .

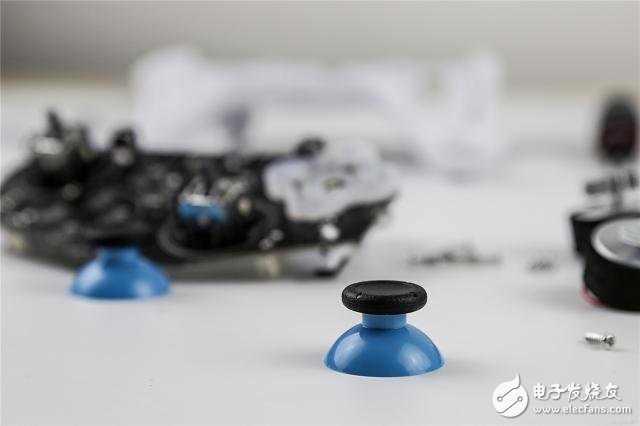

In addition to the rocker itself, the rocker cap has been carefully designed by Beitong engineers. The surface is concave, forming a closed touch line, the middle is smooth, and the surrounding is sun-dried, giving the player a clear sense of touch and enhancing the desire for control.
ALPS micro switch shoulder button
The LB/RB button adopts the Japanese ALPS micro-switch, which is launched at the touch of a button. There is no pre-zero delay, it is refreshing and refreshing, and the enemy can be killed instantly in the game.
Gyro type cross key

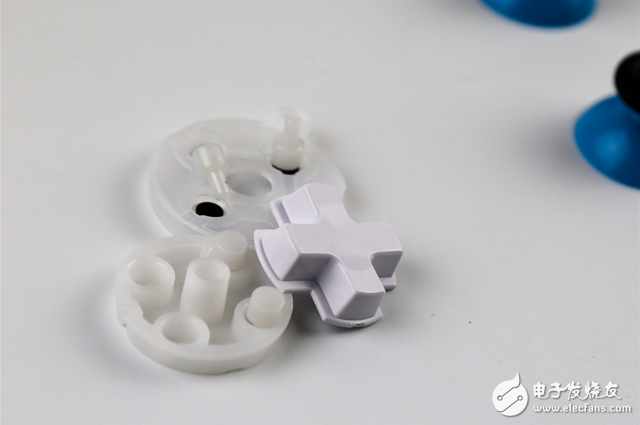

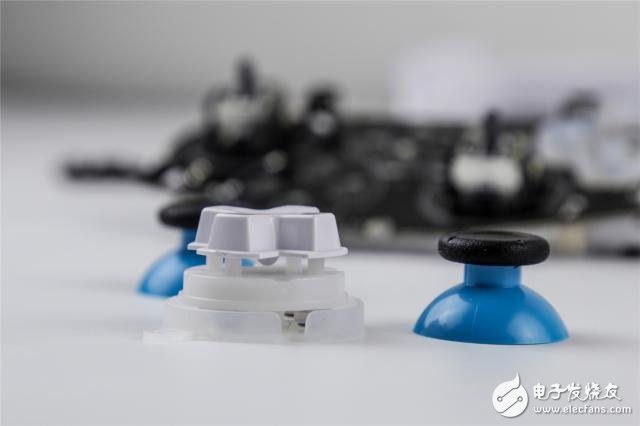

After talking about the board, what remains on the front case is the various buttons. Remove the conductive adhesive, and the gyro-type cross key of Beitong's innovative design finally appeared. The author expressed his surprise that a set of gyro-type cross key structure system was composed of a cross key, four transmission posts, a fixed plate and a conductive adhesive. With the center as the axis, it rotates in eight directions. Each direction is output through a conductive column, which achieves the smooth flow and never connects the keys. The engineers at Beitong really worked hard on the design of the cross-key structure.
Glare ABXY action button

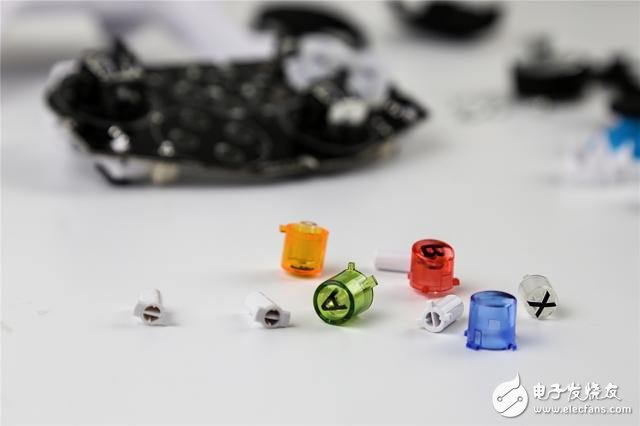

The ABXY button is inlaid with two transparent pieces. The top of the inner part is printed with letters, and the outer surface is covered with a transparent transparent cover. The light is transmitted through, which is colorful and charming. In terms of structure, the positioning slots of the four buttons are different, which ensures that the buttons do not derail when pressed, and the workers are prevented from misplaced the buttons during factory production.
In the domestic game controller, Beitong Ashura 2 is a handle comparable to Xbox ONE and PS4 controllers, CSR Bluetooth chip, ALPS competitive rocker, Noble linear potentiometer, innovative gyro cross key with 1.6mmFR4 glass fiber sink Gold circuit board, Beitong Ashura 2 gamepad with the most advanced hardware configuration to support an e-sports costume. Beitong engineers focused on refining every structural detail and grasping each 0.1mm data error to create the perfect e-sports handle. Coupled with the XD4+ game engine developed by Beitong in the past 20 years, Beitong Ashura 2 is undoubtedly a player's e-sports weapon.
"0.1 seconds to decide the outcome" is by no means an empty talk.
