Photovoltaic (PV) modules hold great potential for generating renewable energy, yet understanding how to effectively harness solar power remains a topic of interest. Simply placing panels on your roof won’t cut it—there’s much more to consider. For instance, not every rooftop offers the ideal orientation or angle to maximize solar absorption. In the Northern Hemisphere, an unobstructed PV system should ideally face south to capture the most sunlight. The optimal tilt angle would correspond to the latitude of the location, ensuring maximum energy capture throughout the year. However, depending on whether you’re aiming for higher yields in specific seasons or times of day, adjustments to the angle or direction might be necessary. Regardless of the time of year or day, it’s crucial to avoid obstructions like nearby trees or buildings, as even partial shading of just one cell within a PV module can drastically reduce overall output.

Assuming you’ve got a south-facing roof free from obstructions, the next step involves sizing your system appropriately. This isn’t straightforward since the amount of electricity generated varies with weather conditions, which are inherently unpredictable. Moreover, your household’s energy demands fluctuate over time. Thankfully, meteorological data provides regional averages for monthly sunshine hours, accounting for rainfall, cloud cover, latitude, humidity, and Other factors. Designing your system around the least sunny month ensures consistent power supply year-round. Combining these weather statistics with your typical monthly electricity usage (readily available from utility bills), you can estimate the number of PV modules required. Additionally, deciding on the system voltage depends on how many modules you plan to connect in series.

Of course, a key challenge arises when there’s no sunlight—no one wants electricity restricted to sunny daytime hours. That’s where energy storage comes into play via batteries. Unfortunately, batteries significantly increase both upfront costs and maintenance requirements for photovoltaic setups. Still, they remain essential for complete independence from grid reliance. An alternative approach is connecting your home to the grid, allowing you to purchase electricity during shortages and sell excess power back when available. Effectively, the grid serves as a massive virtual battery. However, obtaining approval from utility providers is necessary, and their purchasing rates are usually far below retail prices. Furthermore, specialized equipment is needed to synchronize your PV-generated AC power with the grid’s frequency and waveform, along with implementing safety measures like isolation to protect line workers during outages.

If opting for battery storage, keep in mind that batteries require periodic maintenance and replacement after several years. While PV modules boast lifespans exceeding two decades, batteries don’t share this longevity. Given their potential hazards—containing stored energy and acidic electrolytes—they must be housed in well-ventilated, non-metallic enclosures. Across various battery types, all share one characteristic: they’re deep-cycle batteries. Unlike automotive starter batteries (shallow-cycle types), deep-cycle units sustain prolonged discharges over extended periods without compromising lifespan. Car batteries discharge high currents briefly to start engines and recharge quickly upon driving, whereas PV systems release low currents continuously over hours and recharge gradually throughout daylight hours.

The most prevalent deep-cycle batteries include sealed and open lead-acid models alongside nickel-cadmium variants. Nickel-cadmium units, though pricier, offer long service lives and tolerate deeper discharges without degrading performance. Even so, deep-cycle lead-acid batteries suffer shortened lifespans under 100% discharge conditions. Generally, discharge rates in PV installations stay below 40%-50%. A charge controller becomes indispensable when using batteries to prevent overcharging or excessive depletion, thereby extending battery life.

Another consideration involves converting DC power from PV modules or batteries (if chosen) into AC suitable for household appliances and the grid. This task falls to inverters, devices transforming DC into AC. Larger inverters typically integrate automatic operational controls, while some modern PV modules feature built-in microinverters, negating the need for centralized units and simplifying wiring.

With mounting brackets, cabling, junction boxes, grounding equipment, fuses, circuit breakers, and additional components, your setup complies with electrical codes (such as the NEC’s provisions for PV systems). Professional electricians experienced in photovoltaics should handle installations. Post-installation, maintenance-free operation (excluding battery usage) ensures decades of clean, silent energy generation.

Despite solar energy’s promise as a free resource, widespread adoption faces hurdles. Misconceptions persist despite the sun being costless; electricity from PV systems isn’t free due to substantial hardware expenses. For example, installing a 3.6 kW PV system in Raleigh, NC, without batteries but connected to the grid, costs roughly $32,000. Such systems find greater utility in remote locations lacking conventional power sources. Research efforts aim to reduce manufacturing costs through mass production, driving down prices until demand surges. Yet, progress hinges on balancing innovation with affordability. Environmental concerns and rising utility costs continue fueling optimism for photovoltaics’ future.

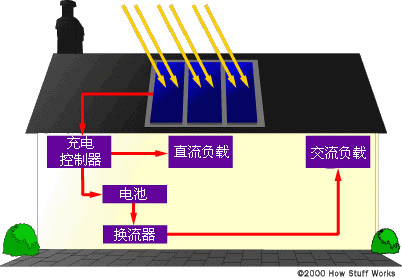

General schematic of a photovoltaic system with battery storage
