Previously, Jingdong had pre-sales of the router RT-AC53 which was swiftly killed (ASUS nickname). Think of an entry-level AC dual-band router that you can buy and try it out.
RT-ac53 box display + machine connection
Then Jingdong shipped on November 1st, and the first time after receiving the goods, we will try to see. Give everyone a look at the look of this router. The front is what the router looks like. There are also some characteristics of the elaboration.
As for the recommendation, we still look at the low-radiation safety certification. I think health is the most important. As the saying goes, some mothers reported that a mother-in-law was trying to get pregnant. She got a jamming device at her door and caused a lot of neighbor wifi to become a decoration. Police often come to make tea and there is no way to solve it. Everyone laughs just fine.
Under Baidu, SRRC is the China Radio Authority and is the official organization. Unfortunately, there is no radiometer in hand, or you can look at the radiation value, and then compare the other ones, and you know if it is true. Radiometer - something N used once, I didn't buy it.

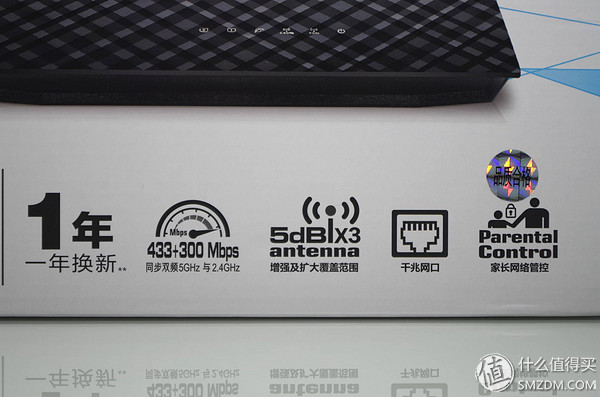

The RT-AC53 uses a theoretical transmission speed of 5G for 433Mb/s and a theoretical transmission speed of 2.4G for 300Mb/s (it is bit instead of Byte). 1000M interface This is a lot of people concerned. Parental control functions are reserved for those who need it.

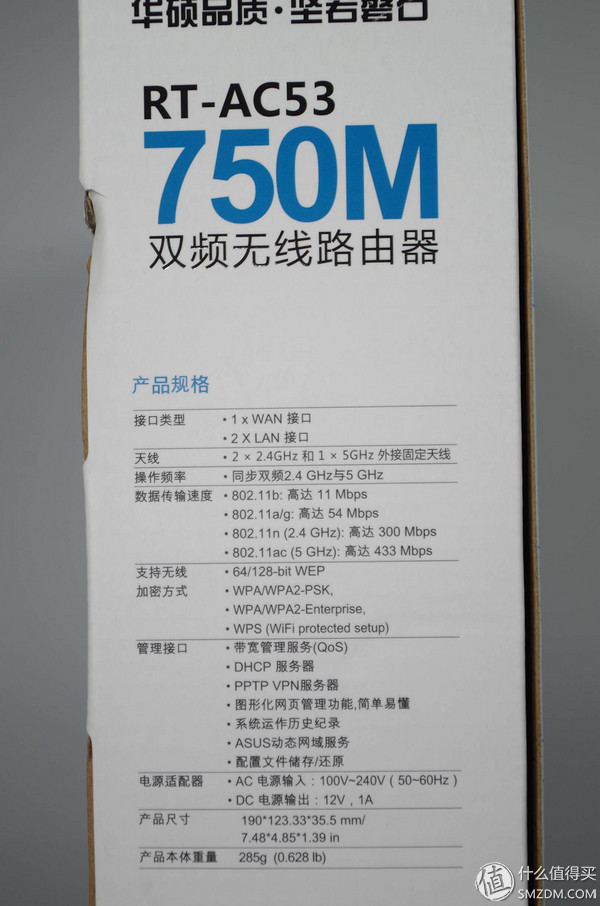

On the back, the left side can be said to be an easy installation guide for the router, and on the right side is the parental control, with the introduction of the entire RT-AC series.
Er er er um 1 WAN port, 2 LAN ports, dual band AC entry level router. The weight is about 285g.

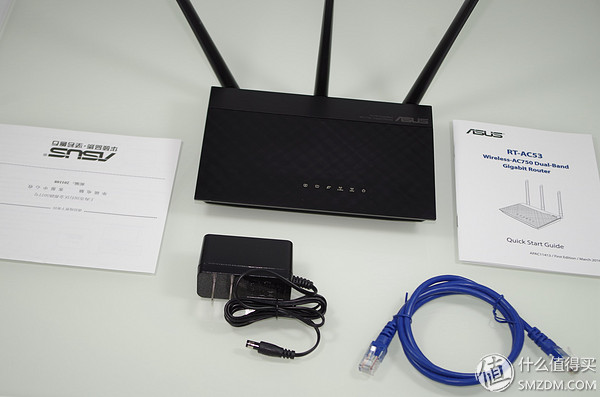

Open the outer box, there are these things - a router, transformer power supply, a network cable (visual ultra five) explain that with the warranty card.
The RT-AC53 body adopts a horizontal layout with three antennas and uses two 2.4G antennas and one 5G antenna. The front is similar to carbon fiber and feels concave and convex. Indicator light is embedded. The upper part is brushed metal-like handles, with the brand LOGO in the upper right corner.
Horizontal, fixed antenna can not be removed, more traditional horizontal modeling.

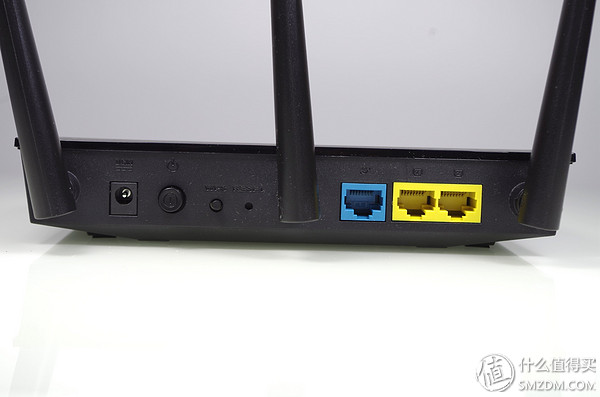

Behind it, there is a wan mouth and two gigabit lan mouths. The power switch and WPS button are on the other side. It is a bit unaccustomed to use 4 gigabit Lan ports. The entry level is for no NAS, no GEN8, just use two computers + N mobile phones.

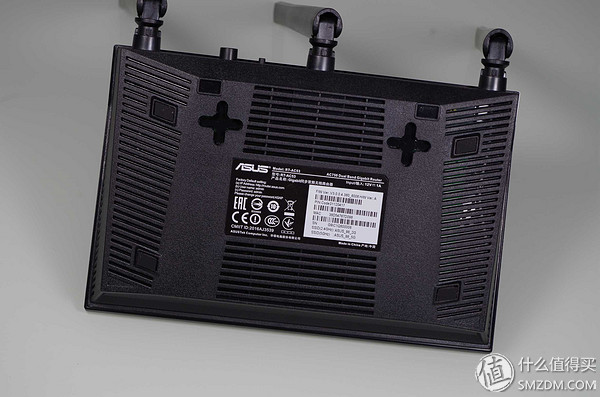

There are cooling holes on the back and a cross hole on the back. With a cross hole, you can hang your mood in four directions.
The additional Cat5e cable, transformers and transformers are the new national standards.
The built-in indicator light is blue when it is on. The above logo will be understood at a glance. I will not say it.

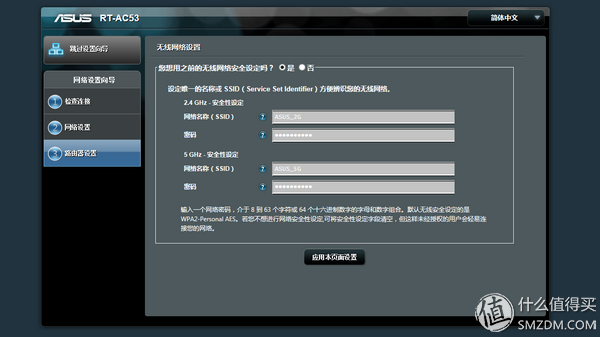

This router can be said to be easy to install. Once you have connected the network cable, enter router.asus.com to enter the auto-wizard mode.
This article belongs to experience sharing. If you want to change the router settings later, but enter router.asus.com, you can't find the router. Follow these steps: Start menu - Run (or taskbar search box) - Type "CMD" - Type "ipconfig" - View and record your default gateway - Enter the gateway into your browser.

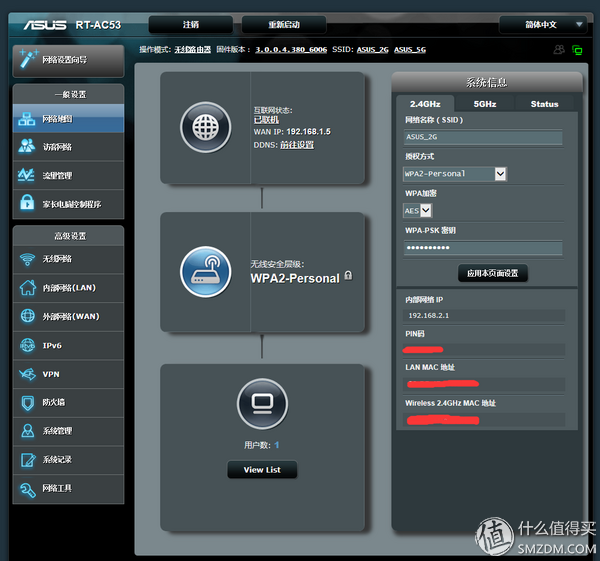

ASUS's classic router interface is relatively simple, refreshing, and easy to use. Many functions are known at a glance.
The RT-AC53 also provides QOS functionality. You can independently choose whether to switch, as well as independent choice of speed limit.
Well we enter the router to measure the link
The actual measurement of the router.

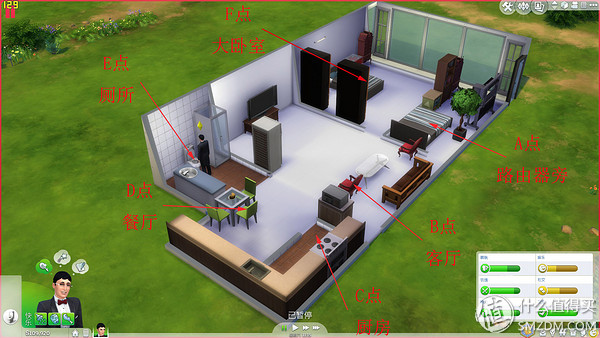

First of all, I use game modeling - this will make it easier for everyone to see the layout and situation of my home.

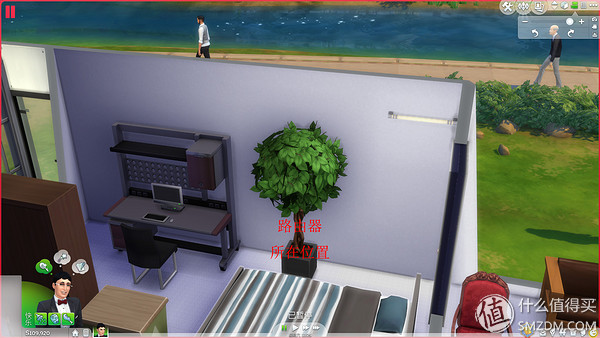

Use this plant instead of the router to identify it in the modeling. The router is in the small bedroom, next to the computer.
Select several locations that often need to use wireless WIFI. The order of A~F is clockwise, which is convenient for me to record. Remember that the location of the plant on the way is where the router is located.
By contrasting the top and bottom graphs, you can see that each point needs to pass through several brick walls and roughly the space distance.
This figure is to turn a perspective, so that everyone can understand the viewing.

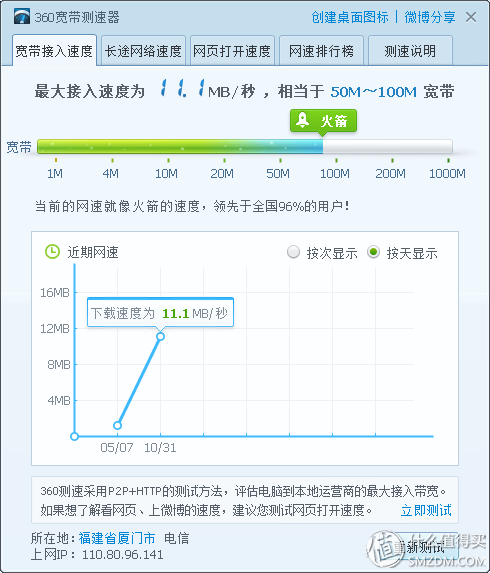

My home is currently China Telecom's 100M fiber. After the cable is connected, the speed is measured. The cable also uses a Category 5e jumper (same as the cable). Note that the unit at this time is MB/S, which is 8 times the value of Mb/S. 8 bit = 1 Byte. So it's basically equivalent to 88.8Mb/s, compared with wireless data.

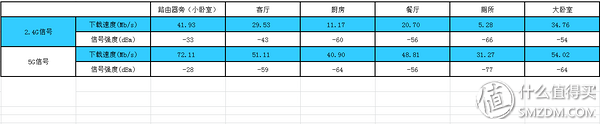

I will not show the data. Everyone will see 24 data. Look directly at the form! Er er er watermark is so big.........

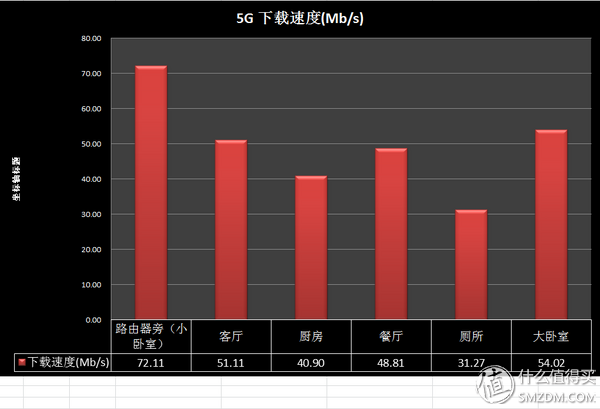

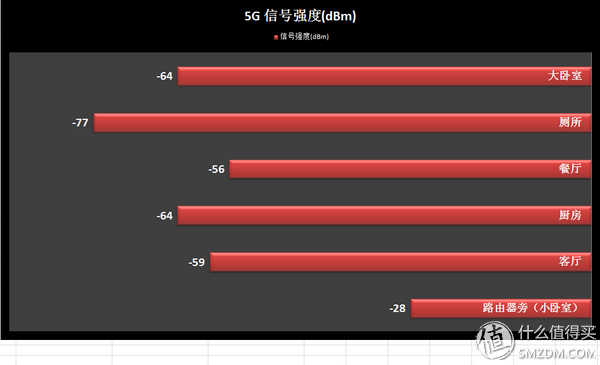

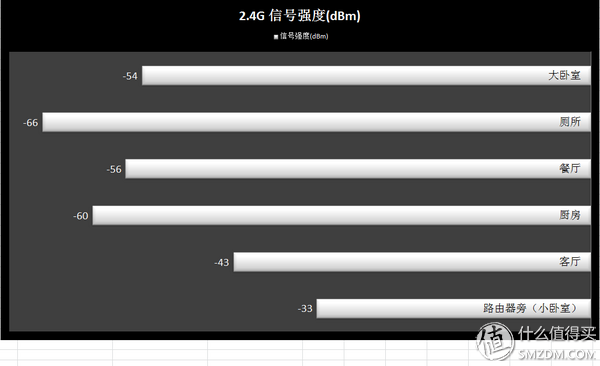

White is 2.4G signal chart, red is 5G signal chart
It can be seen that even if the signal is extremely bad in the toilet, or the download speed of the 5G signal is faster, the 2.4G signal may look stuck in the online video. 5G will certainly consume more power because the signal is weak...
to sum up
As an entry-level AC dual-band router, the RT-ac53 is good for simplicity and ease of use, and its performance meets entry-level requirements. However, there are only two Gigabit LAN ports, which can cause slight egg pain. The 5G signal can basically completely replace the 2.4G signal, and it also has the characteristics of less interference sources. QOS and parental controls can be customized on demand.
However, domestic routers have been catching up and joining the battlefield. ZTE, Xiaomi, Huawei, Meizu, and other routers have made this market more choices. We will wait and see how we will behave.
