Application circuit of direct spread spectrum DSSS transceiver CC2420

CC2420 is a Direct Sequence Spread Spectrum (DSSS) transceiver that complies with IEEE 802.15.4 and EN 300440 (Europe), CFR47 Part 15 (USA) and ARIB STD-T-66 i Japan) standards. It is suitable for applications in the 2.4 GHz IEEE 802.15.4 system, ZigBee system, consumer electronics, industrial control and PC peripherals.

The main technical features are as follows:

·Working frequency is 2.4～2.4835 GHz:

·The data transmission rate is 250 Kb/s;

·O-QPSK modulation method;

·Sensitivity is -94 dBm;

·Working voltage is 2.1～3.6 V:

·The receiving current consumption is 19.7 mA, and the transmitting current consumption is 17.4 mA;

·Programmable output power, support 802.15.4 MAC hardware, 4-wire SP1 interface.

Application Circuit of Direct Spread Spectrum DSSS Transceiver CC2420

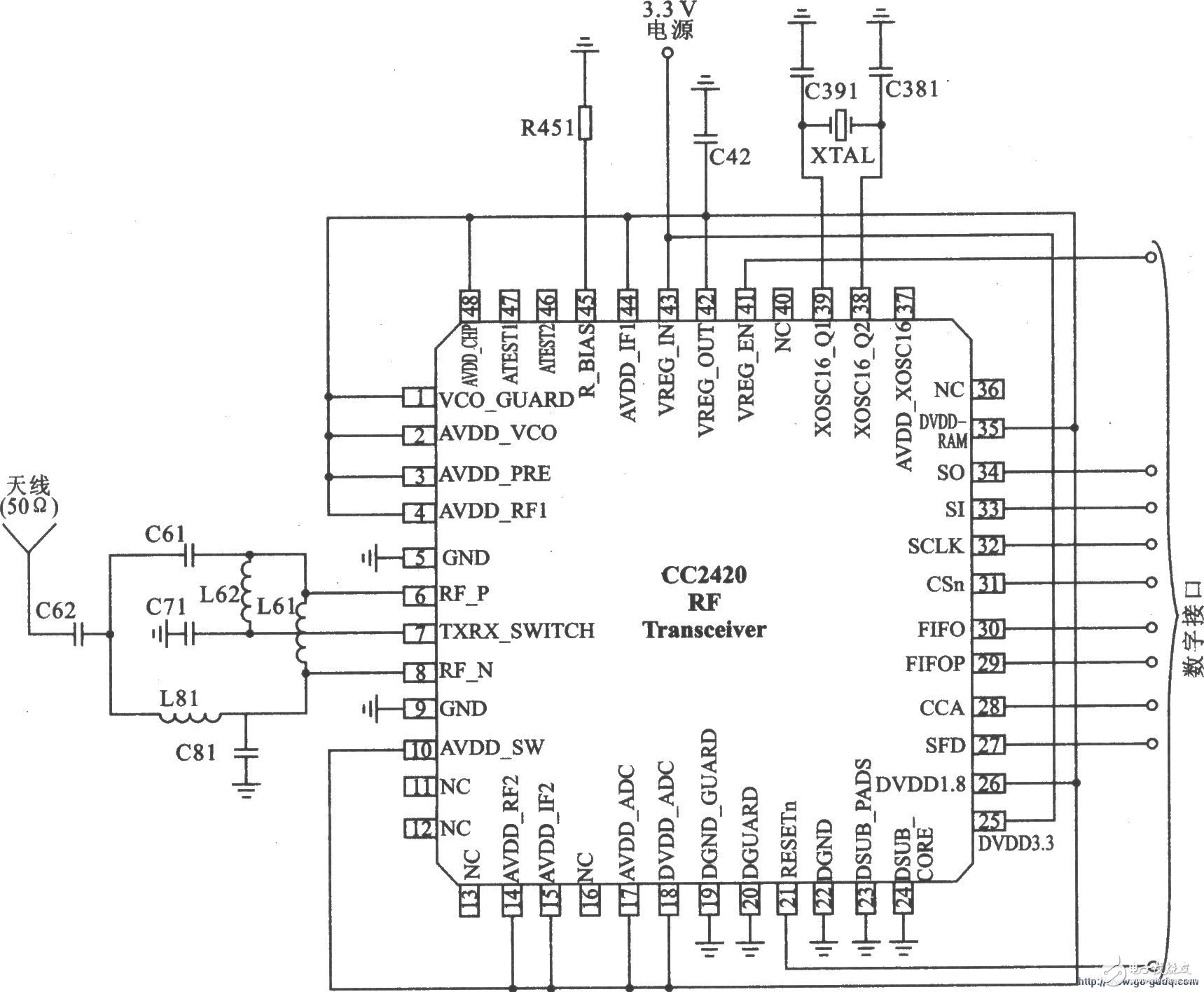

CC2420 uses unbalanced transformer single-ended output typical application circuit

Application circuit of direct spread spectrum DSSS transceiver CC2420

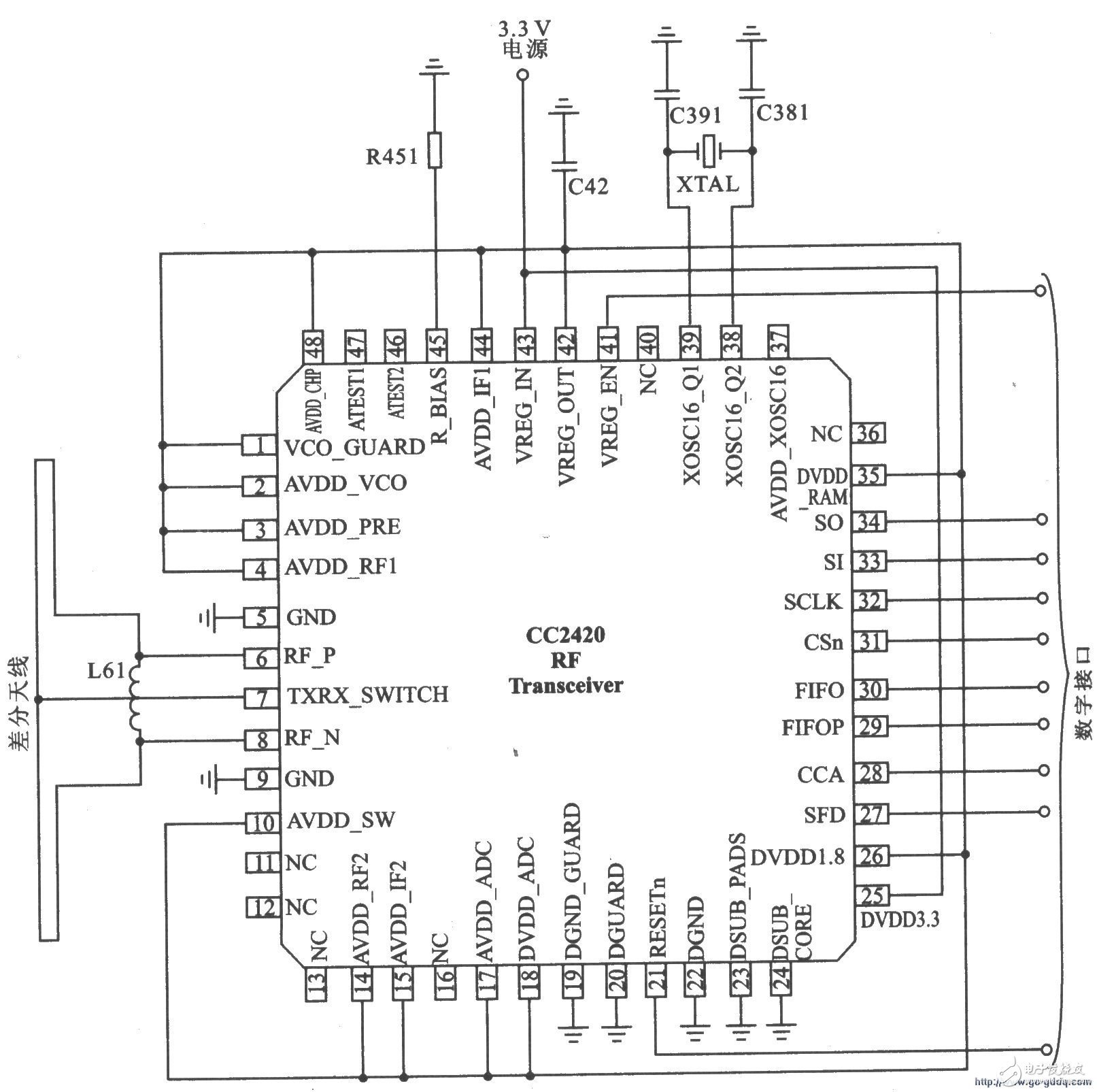

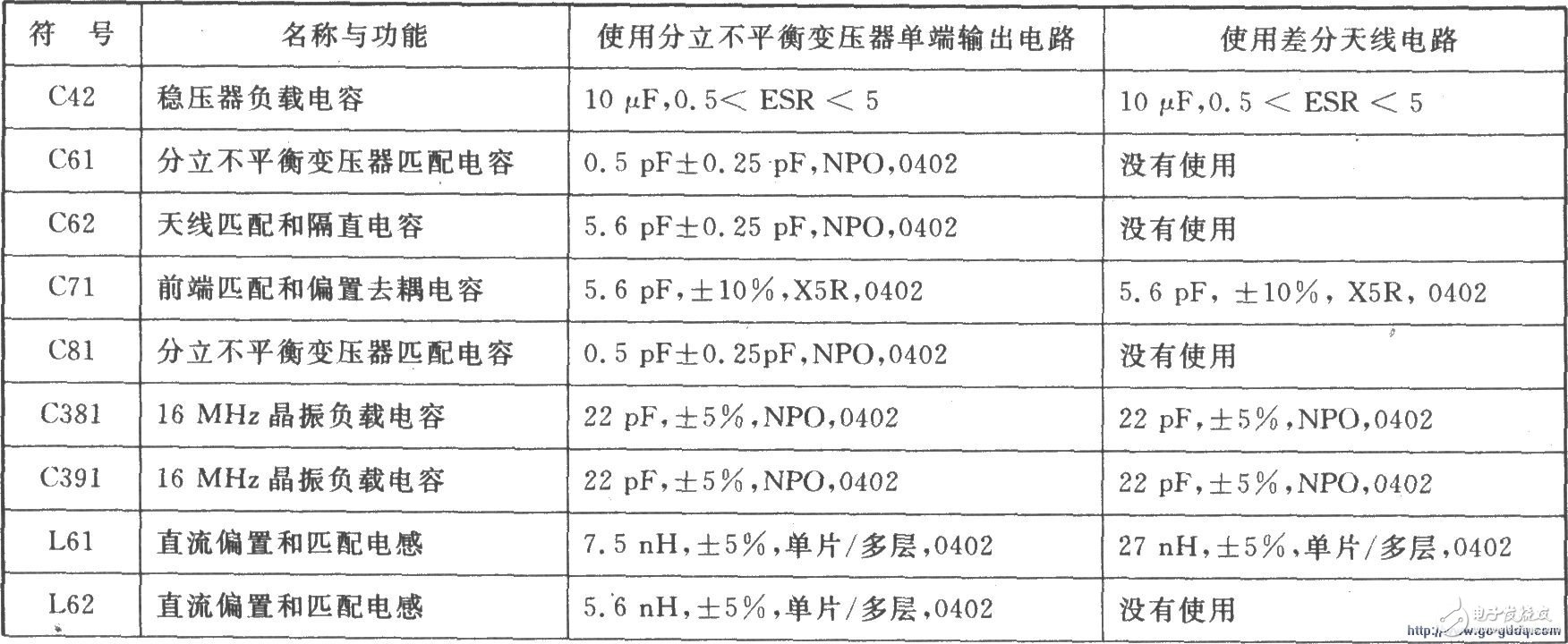

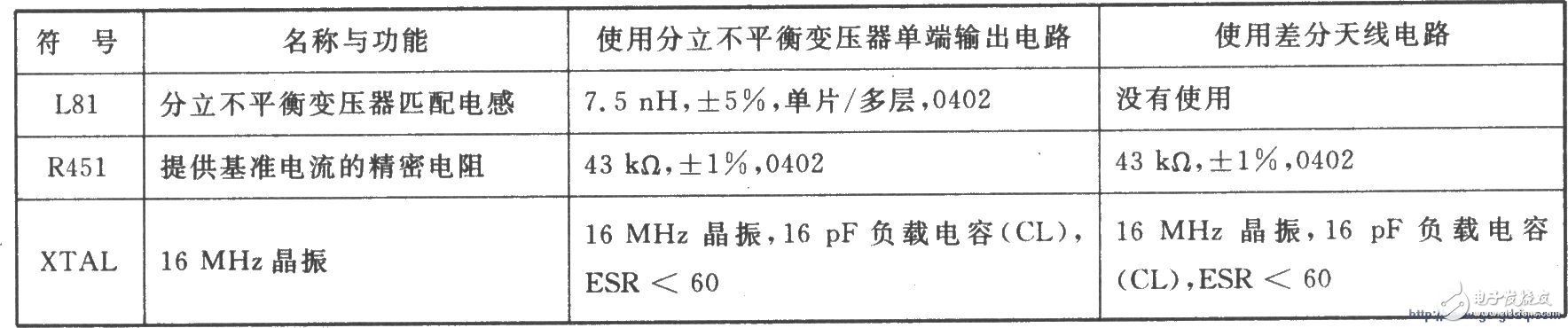

Typical application circuit using differential antenna CC2420 components parameters in two application circuits

Application circuit of direct spread spectrum DSSS transceiver CC2420

Application circuit of direct spread spectrum DSSS transceiver CC2420
