With the development of China's economic level and the accelerating urbanization process, many problems of urban transportation are becoming more and more prominent, and electronic monitoring systems play an important role. In order to solve the urban traffic problem, Suzhou Hida Communication Technology Co., Ltd. hereby launched a high-definition electronic police dedicated switch - ESD209-G. The switch provides safety and security for urban transportation systems directly with the advantages of high adaptability, high stability and high flexibility.

Product introduction

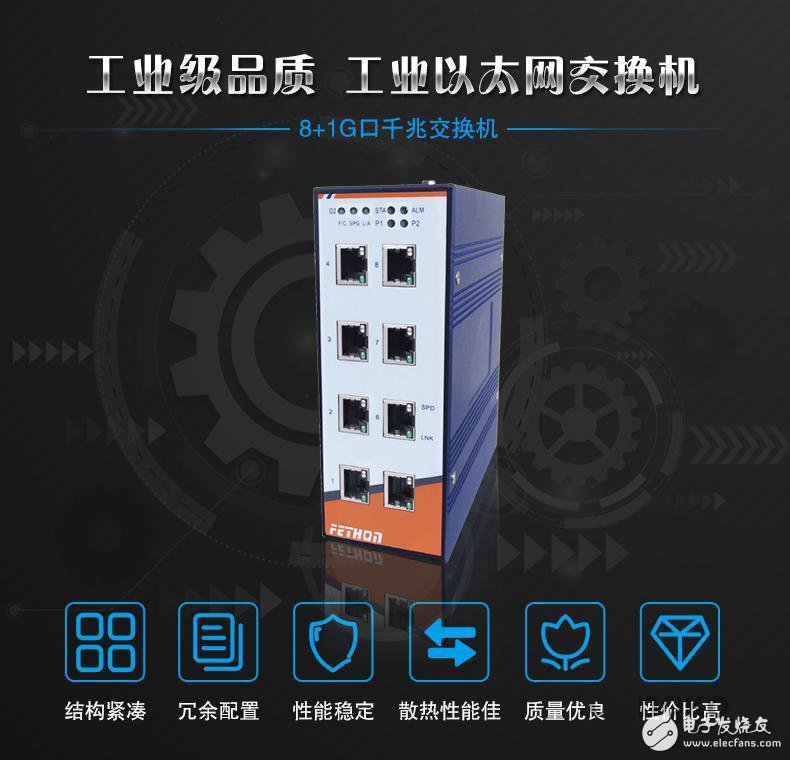

The ESD209-G is a high-performance, patented Ethernet switch with a high-strength aluminum alloy casing that provides eight 100M ports and one Gigabit combo port. It can be configured with any number of 100M optical ports and can be connected to 8 ports at the same time. Road HD cameras and uplinks through a gigabit channel. The product is designed to exacting industrial grade standards. All devices are industrial grade devices that are fully capable of meeting the requirements of an electronic police system with high reliability and stability.

Product advantages

High adaptability

The ⊙ housing is made of aluminum alloy, the surface is made of special heat-dissipating coating, and the special groove design increases the surface area and greatly improves the heat dissipation performance.

⊙ It has IP40 protection grade and has excellent waterproof, dustproof and anti-corrosion ability, which can adapt to various harsh working environments.

⊙-40 ° C ~ 75 ° C operating temperature, can also operate safely under extreme weather conditions.

2. High stability

⊙Two-way redundant power supply design, 4pin pluggable terminal, support 12~36V wide voltage input, AC and DC universal, and provide power supply anti-reverse protection and overvoltage and undervoltage protection, greatly improving the stability of product operation.

⊙ ESD209-G has a mean time between failures of 300,000 hours. During the five-year warranty period, it can provide free replacement service to completely solve the worries.

3. High flexibility

⊙ Eight hundred megabytes of electrical ports can be changed to fiber ports according to the needs of use, and the SC/FC/ST interface is optional.

⊙ One Gigabit combo port is photoelectrically multiplexed, RJ45 Gigabit electrical port can be used in short distance, and pluggable Gigabit SFP optical module can be externally transmitted, and the longest transmission distance through optical fiber is up to 100 km.

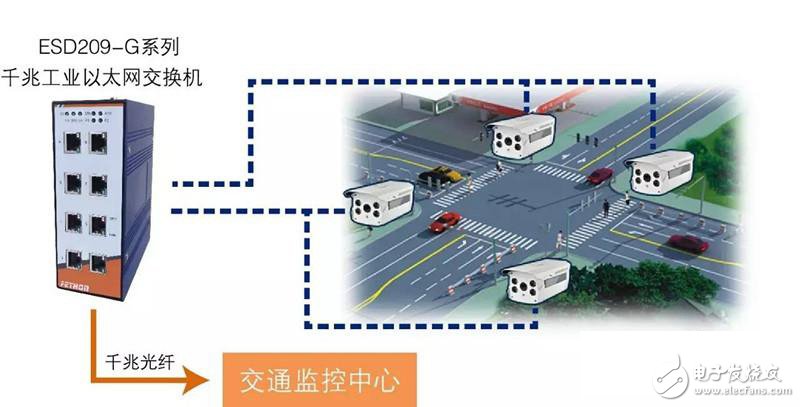

Application

The company enjoys a high reputation in the industry for its advanced technology, reliable product quality, years of professional manufacturing experience and quality service.

In the ever-changing information age, high-definition electronic surveillance has developed rapidly. The high-definition electronic police special switch, ESD209-G, launched by Suzhou Hida Communication Technology Co., Ltd. will provide a feasible solution for urban transportation communication system with its unique advantages.
