Outstanding cost-effective big screen flagship glory NOTE8 evaluation

In recent years, with the continuous transparency and concentration of mobile phone hardware supply, the homogenization of the entire smart phone market has become more and more serious, and the innovation capability of the entire mobile phone industry has slowly begun to slow down. In the face of increasingly saturated smartphone market and users in the "changing tide", the market is continuously subdividing and adding different product lines has become one of the solutions for many current mobile phone manufacturers to solve the problem temporarily, so many manufacturers launch Different types of products with different sizes are configured to further meet the needs of different users in the market, and through the differentiation between different products, the sales volume of products is increased. It is in this context that Glory has launched one of the three flagship products of 16 years with the largest screen size: Glory NOTE8.

As the only medium for people to interact with mobile phones at the moment, the importance of the screen to our use of mobile phones is self-evident. I remember when the iPhone 4 was released six years ago, the Jobs Joe helped the Lord decide that the 3.5-inch phone is the best size for both mobile and portable phones. In the continuous development of the next few years, the development of mobile phone screen size has also long ago broke the “golden rule”. With the ever-increasing capabilities of smartphones, people are increasingly inclined to the latter in terms of portability and functionality. Many users have also shown that they cannot return to the past after experiencing the visual pleasure brought by large-screen mobile phones. . Therefore, various manufacturers continue to introduce products such as "Max", "Note" and various other 6-inch screens. Along with this, it also brings new problems: The bigger and bigger the mobile phone screen, apart from merely improving on the look and feel, what kind of experience can we bring to us? This is also the evaluation of this article for glory. NOTE8.

At the conference, Glory positioned NOTE8 as one of the three flagships of the year: Glory V8, Glory 8, and Glory NOTE8, rather than a simple large-screen mobile phone. Both bear the name of the flagship, first of all need to have a flagship reality. In this part of the article, we first look at the honor of whether the hardware configuration of NOTE8 can afford the title of the big screen flagship.

Glory NOTE8 hardware parameters screen features 6.6 inches 2560x1440 resolution, 443ppi body size 178.8x90.9x7.18mm body weight 219g processor unicorn 955 (all standard) network mode full Netcom 4G+, support VoLTE body memory 32/64 /128GB Running Memory 4GB Camera Features 13MP, 8MP Front Features Metal Body USB Type-C Interface Fast Charge Battery Capacity 4500mAh (energy density 650wh/L) Operating System EMUI 4.1 , based on Android 6.0 body platinum color light gold, ice silver, elegant gray price sales 2299/2499/2799 buy Huawei official address Mall (click for more details), Jingdong (click for more details)

Glory NOTE8 is powered by the Hass Unicorn 955, equipped with a 2K (2560x1440) resolution 6.6-inch large screen, comes standard with 4GB RAM, and is equipped with a 4500mAh large-capacity battery. And equipped with a Type-C interface and support for 9V2A fast charge. If these are just the basic configurations of a flagship machine, then the price of 2299 yuan in the same level of products reflects the sincerity of glory. As you can see, as the big screen flagship, Glory NOTE8 did not disappoint the flagship in hardware. Of course, hardware is just the basis of a mobile phone, and flagship products can be called "flagship" not just relying on heap hardware. What exactly is the product? We continue to look down.

Design:

It can be seen that the Glory NOTE8 uses a more traditional design language than the Glory V8 and Glory 8. In fact, it is not difficult to understand, compared to the 5-inch screen product, the 6.6-inch Glory NOTE8 must first consider the user's convenience in use, so in the design, the large-screen mobile phone is difficult to have a significant change. But it is more inclined to polish in the details, give priority to ensure the big screen mobile phone in the sense of grasp. Glory NOTE8 screen accounts for 80% of the total, the forehead and chin of the fuselage are relatively narrow, resulting in a visually more compact effect.

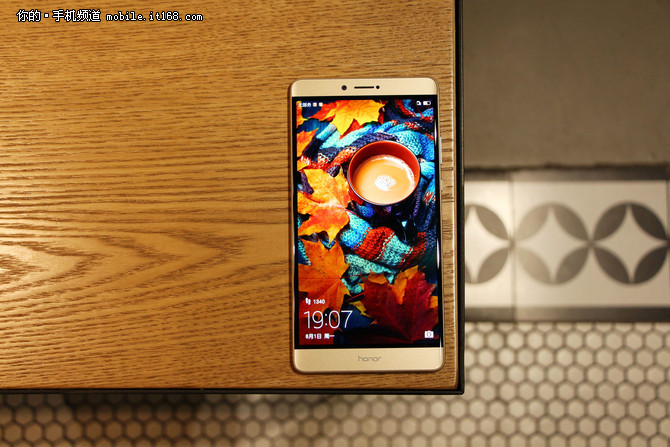

Glory NOTE8 The overall body is slightly square, plus a large 6.6-inch screen, at the first look and feel is very domineering. The front is still using a 2.5D radian glass panel, which has a nice transitional feel between the screen and the frame. The use of 2K resolution (PPi 443) SuperAMOLED screen, even under such a size, it still has a good look and feel. It is worth mentioning that the thickness of the body of NOTE8 is only 7.18mm, and it will not feel too heavy when used. Of course, if you don't have a lot of intuitive feeling about 6.6 inches, you may want to find a 100 RMB as a reference for comparison.

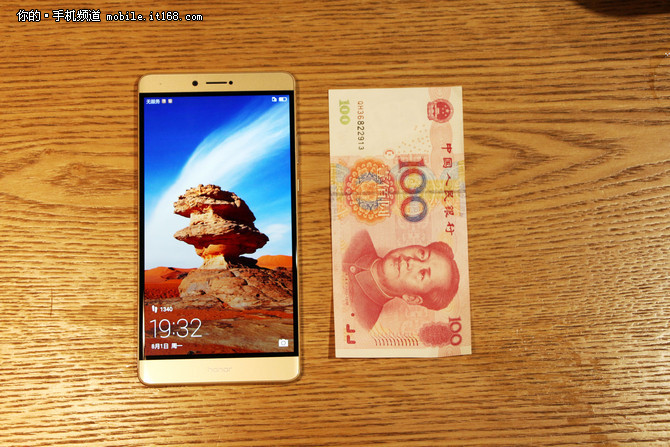

Glory NOTE8 has a size of 178.8x90.9x7.18mm and a weight of 219g. Compared to other products of the same class, this volume is also relatively light and thin. Although it is almost impossible for ordinary people to perform a single-handed operation, due to the large size of the screen, the grip of the entire palm of the hand is dispersed. Therefore, the grip of the glory NOTE8 is not as difficult as we imagined.

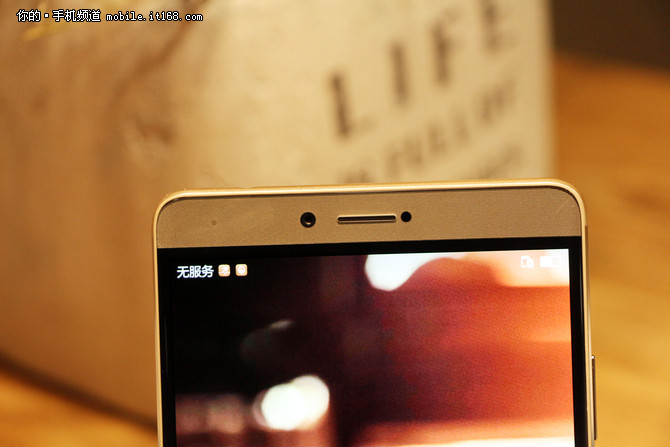

On the top of the front, the glory NOTE8 is the breathing light, the front camera, the earpiece, and the light sensor. Glory NOTE8 uses horizontal bar textures in the upper and lower parts of the fuselage glass, which will slightly change the color under different angles of illumination, making a product such a large screen seem less rigid.

At the bottom of the fuselage, the glory of NOTE8 continues the traditional design of glory: a logo with the word "honor" printed on the "chin" of the fuselage. The system is still the standard three virtual buttons of the Android system. For virtual keys, there are always different voices between users. Some people think that this is the idea of ​​following a standardized design. Some people think that they occupy the area of ​​the screen. However, EMUI also gives a solution: you can set hidden virtual keys in the system.

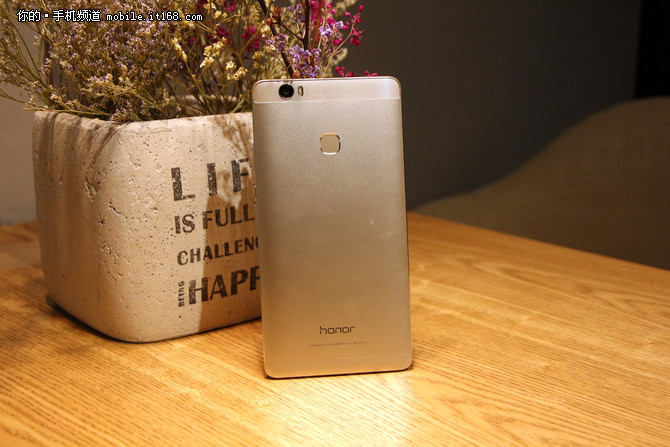

The back of the fuselage, Glory NOTE8 uses a very common three-stage design, this design from the grasp of the performance of mobile phones, to the production of good product rate has long been very mature, which for a main cost-effective products, is very beneficial to Capacity ramp up in the previous period. It is worth mentioning that the metal part on the back of NOTE8 is made of ceramic sandblasting technology. The sanding process is also relatively fine. The actual touch has a delicate touch.

Glory NOTE8 adopts Sony IMX278 sensor, 13 million pixels, F/2.0 aperture, adopts RGBW architecture, and supports optical image stabilization, which makes Glory NOTE8's filming rate improved under night dark conditions. Glory NOTE8 still uses back-fingerprint recognition. In addition to unlocking the mobile phone, it can also support the use of encryption, acting as a shutter button for self-timer, call answering, and other functions. Perhaps this is more common in other products, but for a 6.6-inch mobile phone, quick operation becomes more necessary.

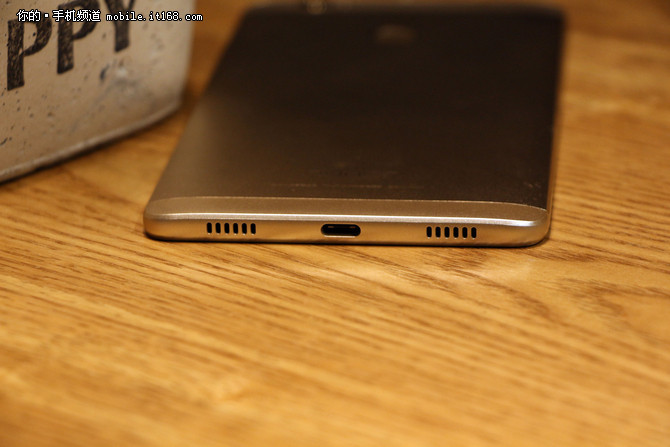

The bottom of the fuselage, Glory NOTE8 as a flagship, naturally equipped with a Type-C interface, supports the rapid charging of 9V2A, this speed is considered mainstream in the current public products. In addition, the bottom of the glory NOTE8 uses a symmetrical sound cavity design (only one sound), using DTS certified sound effects, has a good effect of putting.

Summary: In terms of appearance, although the glory NOTE8 has undergone a drastic change, it still embodies a design that the big screen flagship should grasp in details. Despite the large 6.6-inch screen, the 7.18mm body gives the phone a good grip. In fact, for such a product, it is almost impossible for the user to have high expectations about the convenience of the operation before buying. On the whole, the design of Glory NOTE8 is still biased towards providing a better sense of grip.

Hardware performance:

Huawei Unicorn 950/955 SoC chip parameter comparison product model Huawei Kirin 950 Huawei Unicorn 955 process technology 16nm FinFET+ TSMC 16nm FinFET+ TSMC core number 8 core 8 core architecture Cortex A72+A53+i5 coprocessor Cortex A72+A53+i5 coprocessor Frequency 4x2.3GHz+4x1.8GHz 4x2.5GHz+4x1.8GHz Network Baseband LTE Cat6 LTE Cat6 Graphics Processor Mali-T880 MP4 Mali-T880 MP4 Graphics Frequency 900MHz 900MHz

I believe that whether it is Kirin 950 or Unicorn 955 we are all more familiar. The glory of NOTE8 all comes standard with Unicorn's 955 chip. The SoC uses a quad-core A72+ quad-core A53 architecture, Mali-880 MP4 900MHz GPU. We all know that for a processor, architecture and process determine the performance of a processor, the smaller the chip's manufacturing process, the greater computing power at the same power consumption, and the lower the same computing power. Power consumption. Kylin 955 uses the same 16nm process technology as the Apple A9 processor (iPhone 6S/6S Plus) (both from TSMC), and this process technology still maintains a leading position this year.

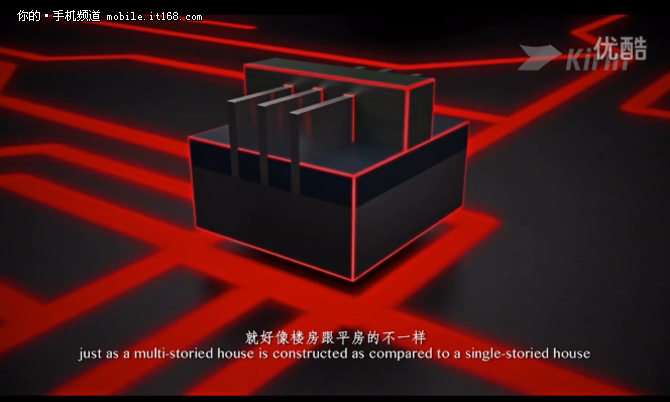

Shape under FinFET+ process

Qilin 955 adopts 16nm FinFEF+ process, FinFEF can effectively control the leakage rate of the chip fence by modifying the shape of the fence. As early as in the Kirin 950, Huawei has participated in the entire process of the 16nm FinFET from R & D to tape and then to mass production requirements. As an upgraded version, Unicorn 955 is upgraded from 2.3 GHz to 2.5 GHz at the main frequency to enhance the processing capability of emergency events. Architecturally, the Unicorn 955 uses a public version of the architecture based on the ARM A72. ARM officially claimed that the core performance of the A72 architecture is 3.5 times that of the A15 architecture (the data is based on the 16nm FinFET process A72 versus the 28nm traditional process A15). The performance of the A57 prior to the A57 architecture has been improved by 1.9 times (the data is based on the 20nm traditional process A57 versus the 28nm traditional process A15). Therefore, it can be seen that the performance of the A57 architecture with the same frequency and the same process as the A72 core performance should be improved by approximately 25% to 35%. In addition, the i5 processor is built in. The power consumption of the i5 coprocessor is only 6.5mA, which lowers the standby power consumption. In addition, it collects information from various sensors and can more accurately calculate and sort data.

In addition, Unicorn 955 uses the Mali-880MP8 as a GPU. In the official test, the Mali-880 can reach the near-crazy MP16, with the consideration of reducing the number of transistors, reducing the area of ​​the SoC package, and reducing power consumption. The Unicorn 955 uses a high-frequency, low-nuclear strategy that uses a Mali-T880 MP4 quad-core GPU clocked at 900MHz. But it is worth noting that the Glory NOTE8 uses the same 2K display as the Glory V8, which is more demanding for GPU performance. We also tested GFXBench GL on this GPU.

The Unicorn 955 is equipped with the Mali-T880 MP8 as a GPU, and the mobile phone is also relying on the GPU to work in the graphics processing of our daily games. Therefore, we also performed the GPU test on the glory NOTE8. In the 1080P Manhattan off-screen scene, the glory NTOE8 scored 12Fps, and in the 1440P Manhattan 3.1.1 off screen, it got 5.1Fps. Such results may not look pretty enough intuitively, but the use of GPU performance does not depend on the results of an unexpected event, but is also a continuous event like CPU operations. How to ensure that the GPU is working at a high frequency for a long time can ultimately enhance the actual use experience. At this point, the advantage of high-frequency and low-nuclear strategy is obvious. The GPU can stay within the power consumption threshold for a longer period of time, thus allowing more time to operate at higher frequencies.

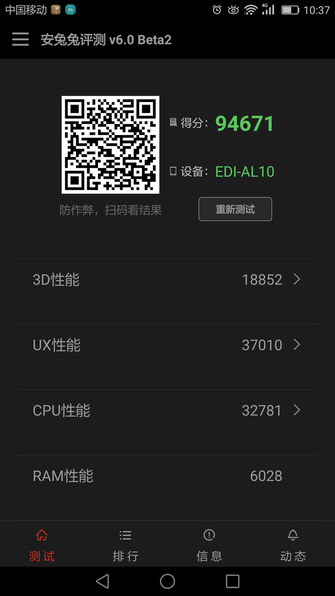

In addition, we also used security Bunny to test the CPU part of the Unicorn 955. It can be seen that Kirin 955 scored 94,671. Although there are still some gaps compared with the current score of more than 100,000 in mobile phones equipped with the Snapdragon 820 processor, the performance of the Kirin 955 has reached the top after years of accumulation. An echelon of SoCs.

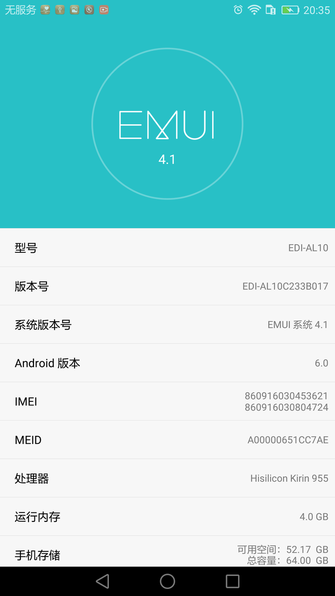

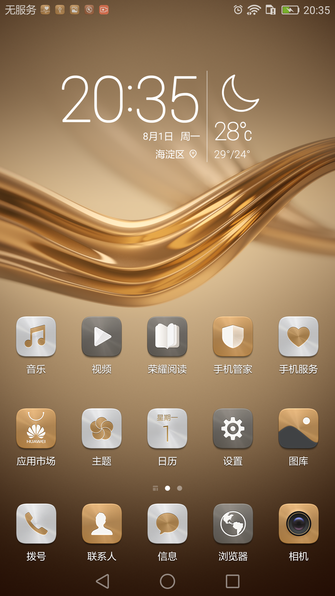

Glory NOTE8 is still equipped with an Android 6.0-based EUI 4.1 system. Compared to previous glory V8 and Glory 8, performance and functionality are basically the same. But for the big screen of Glory NOTE8, there are some features that are worth mentioning, because these features do have a significant improvement in user experience on large-screen phones.

Split screen function to experience more

A larger screen size means a wider range of touch, so the split screen function becomes very important. Because you have a better touch experience than a split screen on a small screen phone, you won't be troubled by the incomplete display of the application after the split screen or the possibility of a false touch.

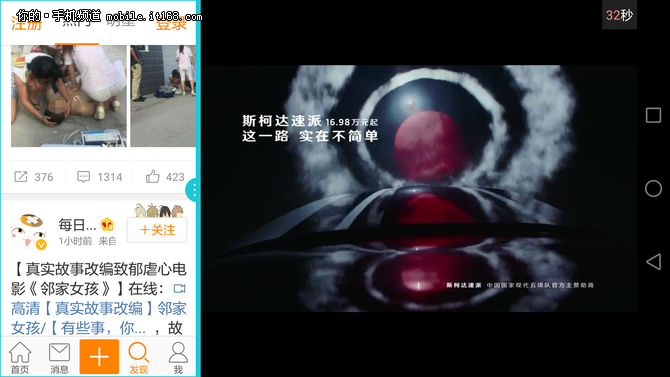

Use glory NOTE8 split screen function to watch video while brushing microblogging

Use the word of glory NOTE8 to watch the page while recording

The gesture of crossing the finger on the screen by the knuckles can directly call out the split screen interface. In terms of entertainment, you can hang up on the side of the video while watching the video. As long as someone sends you a message, you can reply directly without switching the screen. In the office, you can also open a memo on one side of the screen while browsing the web for information or materials. When you find useful information, you can copy and paste it directly. It is very convenient. It is worth mentioning that the self-contained input method of the split screen interface can be independent and allow users to freely adjust the user experience is quite good.

Read the experience to a higher level

Thanks to the big screen of Glory NOTE8, the experience of reading text was also improved. Because under the same font size, Glory NOTE8 can get bigger and clearer text than a small screen mobile phone, making it easier for the eyes to read novels or browse the web. At the same time, Glory NOTE8 also has eye protection mode, its eye protection mode can not only filter out the blue light, but also can automatically adjust the brightness and color temperature according to the surrounding environment, has played a positive role in protecting the eyes.

Geography Alarm

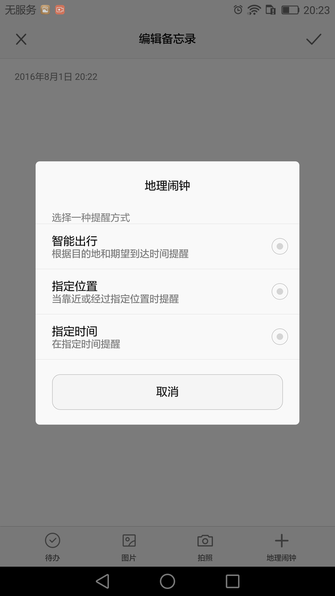

The normal alarm function can only be reminded according to the specified time. The note of honor NOTE8 supports the alarm of geographic alarm. The so-called geo-alarm alarm is that the user can set a location in advance, and when the user arrives at the location, it will start to remind the content, and it also supports setting the time and location simultaneously, which is more intelligent than the traditional reminding method.

This feature has a rich usage scenario. For example, when you need to get a thing from your home to the company the next day, you can set it at your company's trigger location at home to prevent it from being forgotten. In this way, no matter when you go home today, as soon as you get home, you will receive a reminder, instead of the traditional time alarm clock, just silly time to remind you.

Bound quality membership service

The biggest advantage of Glory NOTE8 is the Super AMOLED display of this 2K resolution level. In order to show its advantages to the maximum, Glory has also made a lot of efforts for this, that is to provide users with more massive content support, which involves reading, video, games and other aspects. Glory has provided users with many preferential policies through cooperation with content manufacturers. For example, 1 yuan to buy Youku 3 months membership, giveaways Westbound luxury cultivating packs, give glory to read VIP membership for three months and so on.

Summary :

Although the glory NOTE8 has not been upgraded in terms of system, some practical function points have indeed been amplified in this phone. In addition, Glory provides Youku membership benefits, game spree and other services that allow users to better play the advantages of large-screen mobile phones. In addition, Glory NOTE8 has built-in three microphones that support directional recording, not only recording clearer recordings, but also providing better call quality. With the help of SkyGen, smart intelligence, and WIFI+ technology, Glory NOTE8 remains the leader in business functions.

Camera photo experience:

Glory NOTE 8's main camera uses a Sony IMX278 sensor, pixel size is 1.12μm1.12μm, the maximum pixel is 13 million, the maximum aperture is F/2.0, support for phase focus and optical image stabilization, and equipped with a dual color temperature flash. The biggest highlight of this CMOS is the use of RGBW four-color sensor, which means that the addition of W white sub-pixels on the basis of the three primary colors, this approach allows it to perform better at night imaging, the official said the sample screen brightness can be 32% increase. As for the final imaging effect, we still look directly at the proofs.

From the above proofs, we can see that the image quality of the Glory NOTE 8 is quite good when it is sunny outdoors. The glassy texture of the window on the left side of the house is fully reflected, and the degree of color of the sky is also higher. The overall picture is excellent. However, after 100% magnification, there was a noticeable smearing of the “long” character, but the benefit was to mask the noise.

From the outdoor backlight proofs, the brightness of the entire picture is very good, and the picture looks more transparent. The house building in the far left corner is still clearly visible. In addition, the color of the leaves under high light exposure still maintains a high degree of reduction. And there was no obvious purple fringe around the leaves, indicating that Glory was very serious about this COMS tuning.

As for the indoor proof imaging, since the light is significantly darker than the outdoor one, this makes the photos displayed by the honour NOTE8 slightly increase. From the perspective of color reproduction, it can also be seen from the above figure that the Glory NOTE8 can adapt to a more complex shooting environment. Because the white balance of proofs is very accurate, it is very similar to the real scene.

In terms of night scenes, the image quality of Glory NOTE8 in low-light conditions has decreased significantly compared to the daytime. However, thanks to the RGBW four-color pixel design, its screen brightness is still somewhat improved compared to the average mobile phone. However, the night rate is the point at which NOTE8 needs continuous optimization. Because at night its focus speed has significantly decreased, although there is optical image stabilization blessing, it is still easy to shoot pictures with virtual images. Of course, it does not rule out the evaluation machine for engineering machines. Let's take a look at other samples of Glory NOTE8.

In general, the image level of the Glory NOTE8 is indeed a gap compared to some flagship phones, but it is a bit of an excellent white balance adjustment and sample permeability. At the same time, Glory NOTE8 also built a variety of filters to help users shoot photos of the mood. In addition, for enthusiasts who like to take photos, Glory NOTE8 also has built-in professional mode, super night mode, skin model, food mode, etc., according to different scenarios using more appropriate mode can often shoot better photos.

Evaluation summary:

As the review said at the beginning, what is the so-called "big screen flagship" in addition to improving the visual perception, what should be done in other areas in order to truly be called a useful big-screen flagship. Regarding this issue, after evaluating the Glory of NOTE8, we must have some of our own understanding in mind. Looking at the products of the same type currently available on the market, it is undoubtedly advocating the inherent characteristics of these long-screen mobile phones, such as the “Long Life” and “Visual Experience,” but they may have ignored the products themselves and have been able to truly Selling point of service. In this respect, Glory has brought better content to users of NOTE8 by working with other related content providers. Through the content to enlarge the function point of the big screen mobile phone. In the real need for users to use the pain point, the implementation of the hardware to the actual experience, can be called a real big screen flagship machine.
