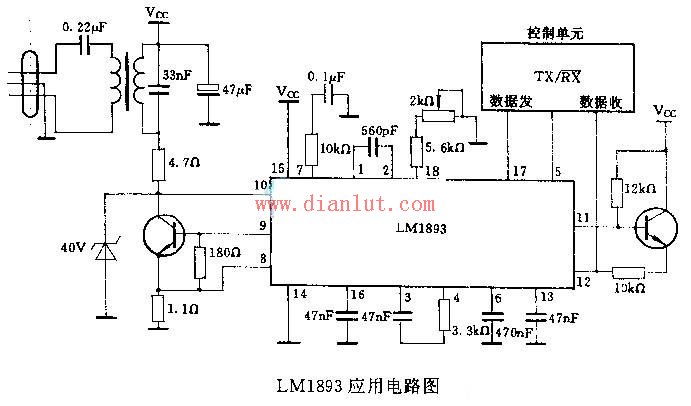

LM1893 application circuit

MP24AE off-the-shelf supply

AVX tantalum capacitor TAJB106K016RNJ stock

Manufacturers supply LED lamp bead SMD LED 0805 yellow light super bright indicator light dedicated

Supply 0603 blue LED

The LM1893 contains all the functions of data modulation and demodulation, so there are fewer external components in the application. The external control unit control system performs half-duplex communication and is responsible for data transmission and reception. Multi-end communication can be done in an encoded form so that the communication network can be formed by means of power lines.
