Analysis of the cause of power adapter burnout

What does the nominal voltage and current of a power adapter (also known as a power supply) actually mean? To begin with, the nominal voltage refers to the open-circuit output voltage, which is the voltage measured when no load is connected and no current is flowing. This can be considered the upper limit of the power supply’s output voltage.

If the power supply has an active voltage regulator, it will maintain a stable output even if the input voltage fluctuates. For example, a small transformer used for a Walkman or similar device will keep its output constant despite variations in the mains voltage. This stability ensures consistent performance for the connected devices.

However, the actual no-load voltage of a typical power adapter may not exactly match the nominal value. This is due to slight differences in electronic components, which introduce small errors. The tighter the tolerance, the higher the quality of the components, which increases manufacturing costs and makes the product more expensive.

Regarding the nominal current, all power supplies have some internal resistance. When current flows through this resistance, a voltage drop occurs inside the power supply. This leads to two main issues: heat generation, which can cause the power adapter to become hot, and a reduction in the output voltage, effectively creating internal losses.

Many power adapters on the market suffer from various quality issues, including:

Most standard power plugs include grounding pins to prevent electrical hazards. However, some power adapters use non-compliant designs that increase the risk of electric shock. Poorly designed plugs may allow accidental contact with live parts, especially when users are not careful. In addition, plug and socket designs that don’t meet local standards can lead to improper connections and safety risks.

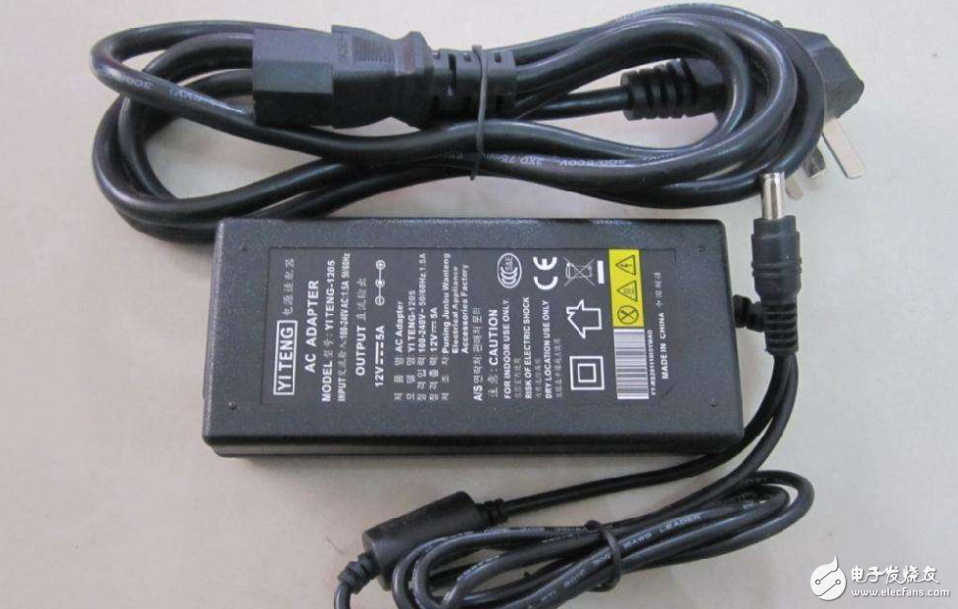

Proper labeling is essential for safe usage. A well-designed label should provide clear information such as the manufacturer’s name, product model, voltage specifications, and safety warnings. If the label is missing or unclear, users may misuse the device, potentially damaging their equipment or risking personal injury. In China, labels must be in simplified Chinese and include key details like the company name, trademark, type code, and power rating.

Power adapters convert high-voltage AC to low-voltage DC, which involves energy loss. This loss generates heat, which is dissipated through conduction, convection, and radiation. If the temperature rises too much, it can damage internal components and reduce the lifespan of the adapter. Some manufacturers fail to ensure proper thermal management, leading to overheating and potential fire hazards.

For instance, well-known brands like Compaq and Apple have issued recalls due to overheating power adapters. As a user, you should monitor the temperature of your power adapter. Under normal conditions, the surface temperature should not exceed 60°C above ambient. In summer, if the room temperature reaches 35°C, the adapter’s surface should not go beyond 95°C. If it feels excessively hot, stop using it immediately.

In the event of a short circuit, internal components like capacitors and diodes can overheat, increasing the risk of fire. Proper design should ensure that even under fault conditions, the temperature remains within safe limits. Some power adapters fail to meet these standards, leading to severe overheating and reduced safety functions.

During inspections, some power adapters were found to have shell temperatures exceeding 150°C, which can melt the casing and compromise safety. Transformers, which act as a critical insulation barrier between primary and secondary circuits, must also meet strict insulation requirements. If the winding temperature becomes too high during faults, it can cause internal damage and failure.

Power adapters are typically 3C-certified products, but many still face quality issues. These problems often stem from inadequate understanding of safety standards, poor design choices, and cost-cutting measures that sacrifice reliability. As consumers, it's important to choose reputable brands and pay attention to signs of overheating or faulty operation to ensure both safety and longevity of your devices.
