As the saying goes, it is not complete that life is not torment, so LZ has the contents of this article, to their own host on the hard water.
Due to the first hard pipe and no experience, he found a small partner to work together to complete.
The first is the tool. After reading a tutorial on the Internet, he bought several necessary tools at TB.

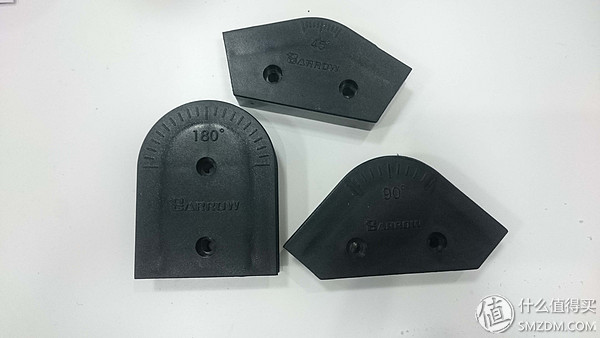

Bend tools, 180°, 90° and 45°

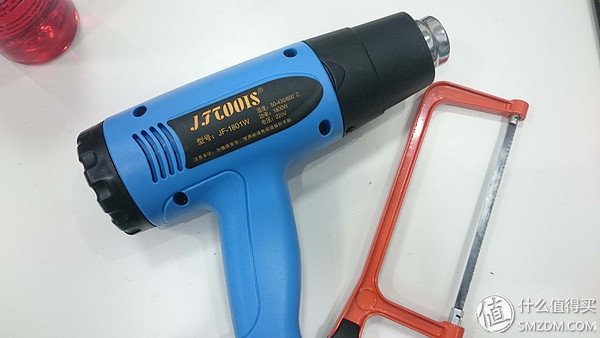

Hot air gun and hand saw

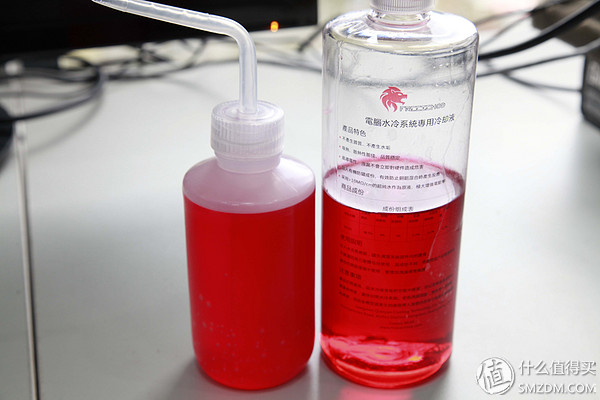

Water-cooled liquid and suction kettle for water
There are also a few roots of the tube, the first lack of experience, afraid of not enough to buy a full eight. (Although it was completed with only 5 roots at the end, it would be more successful)
Commemorate the broken tube
Next is the hardware, configuration, the motherboard is selected Gigabyte Z270-Gaming 5, mainly fancy the board's RGB lighting effect
GIGABYTE AORUS Z270X-Gaming 5 Motherboard (Intel Z270/LGA 1151) 1799 yuan Jingdong direct link The CPU is using the 6700k on the previous host
Memory is selected GALAXY Gamer series vest light, pure red walk.
GALAXY GAMER DDR4 2400 8G Desktop Memory Memory Lights Breathing Lights Lighting Memory Red 399 yuan Jingdong direct link The chassis is also directly followed by the welcome 303, after all, with 303 Sheung Shui is still very much, Ye Hao reference.
There is a fan, Qiao Sibo FR-201P, actually should be the second generation of solar eclipse (probably?)
JONSBO FR-201P-red light 12CM chassis fan (12CM / red LED / PWM temperature control / radiator fan / dual ball / motherboard 4PIN interface) 79 yuan Jingdong direct link The video card selected is the 1070 ice soul of Geng Sheng. It seems that there is no online sale. This is an online store.
Rising 1070 Ice Spirit
The backboard feels heavy and thick

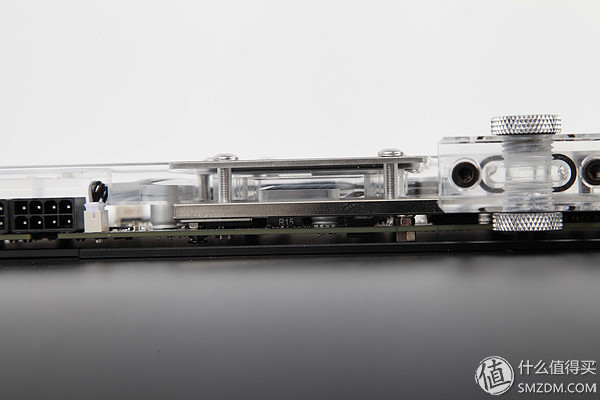

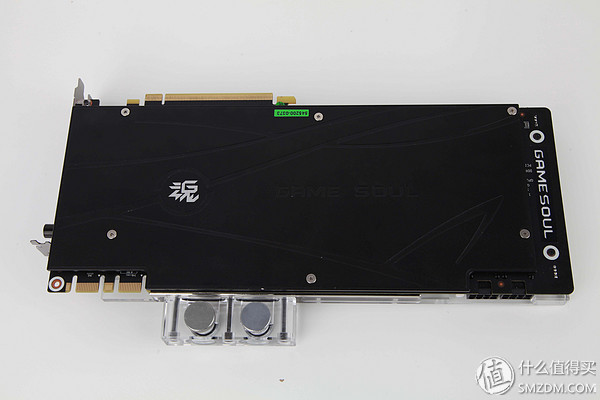

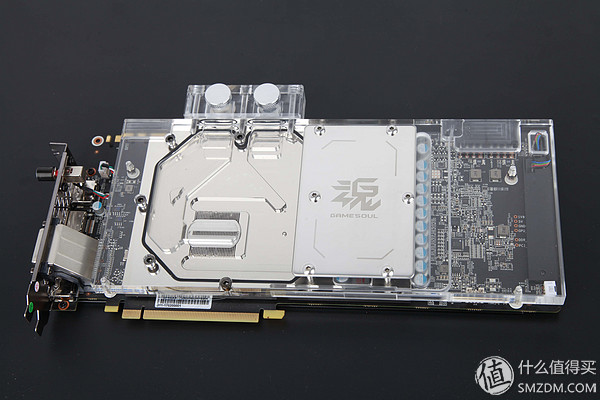

Cold heads cover the core and memory
Then officially started the fistula process
In the bend
To say that this elbow is a technical task, it is necessary to insert a solid rubber strip inside the tube first to prevent it from deforming during softening. Second, the softening time is also very important. Too long time will cause the tube to be too soft and fail to shape. The time is too short. The tube does not completely soften and bend.
So, after playing a few broken pipes, he finally made a few water pipes to use.
Trimming the length of the pipe
Grinding nozzle
After all, it was the first time that the design of the chassis waterway was relatively simple. After referring to many online solutions, it was easier to choose a set.

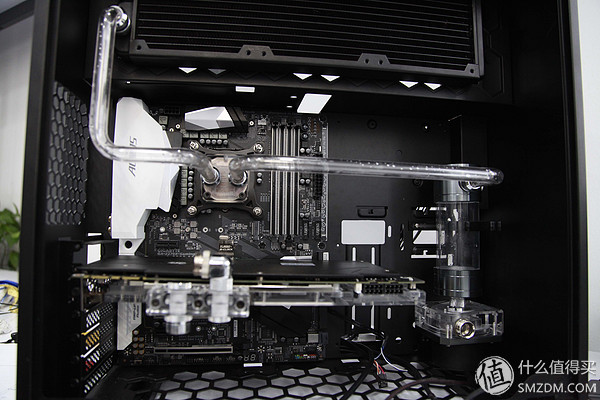

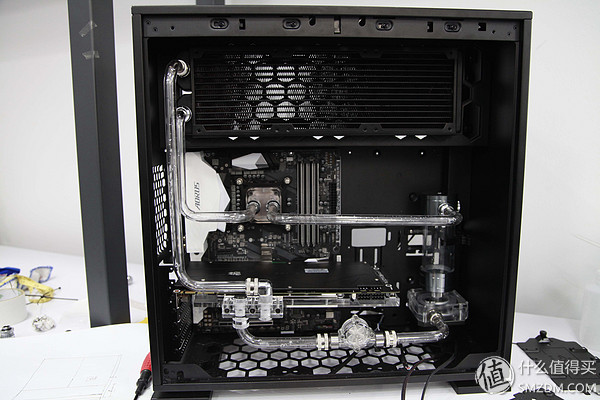

Trying to install
Overall waterway design
Well, on the first attempt, it was quite satisfactory, but the difficult part has only just begun. Sheung Shui is the most crucial part. If there is a chance, it will be difficult to say.

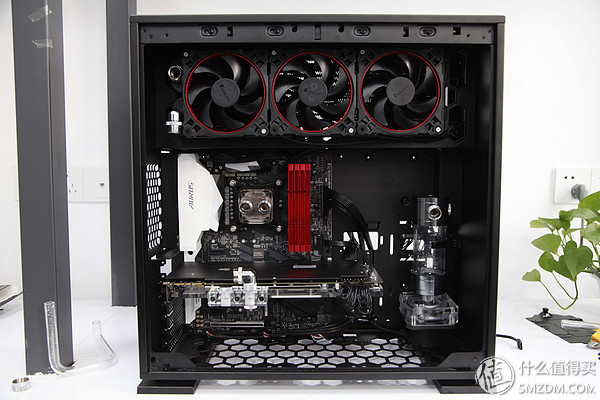

Remove the pipe first and install other hardware

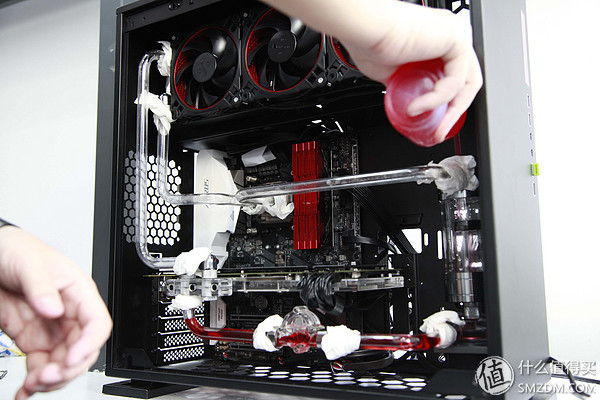

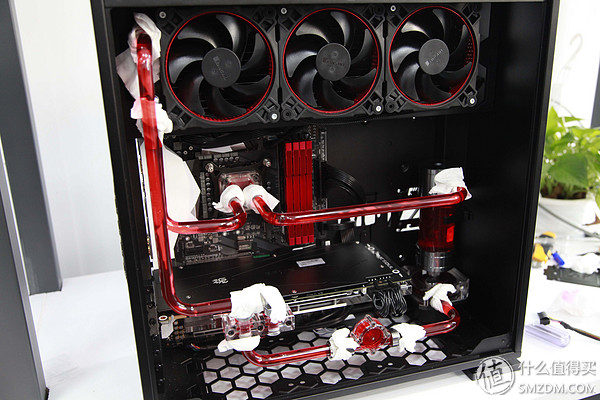

Pack paper towels at each interface and start adding cautious liquids
Trial run and carefully check for leaks
Fortunately, there was no problem with the installation of the waterway. After a period of power-on operation, no leakage was found. It seems that it could be lighted up.

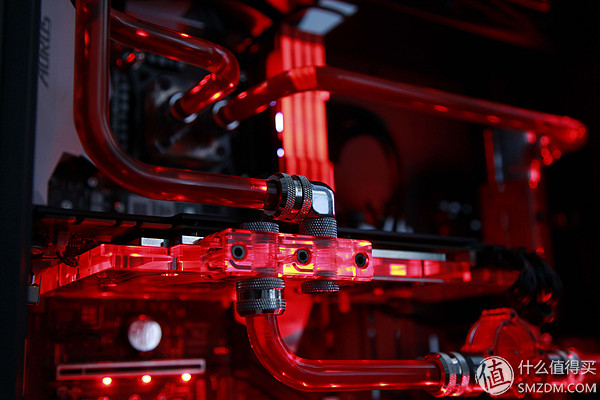

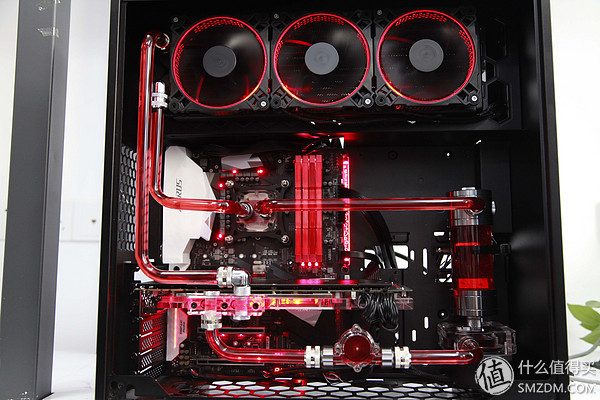

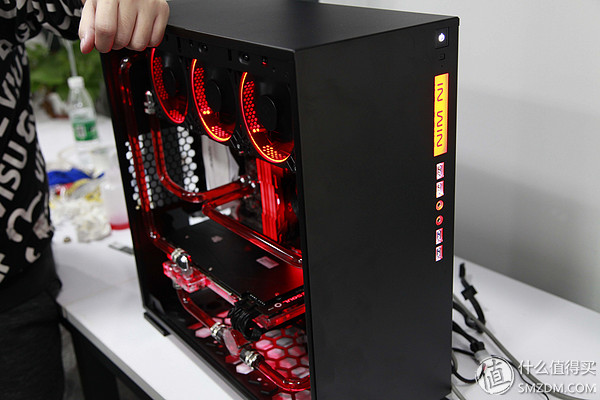

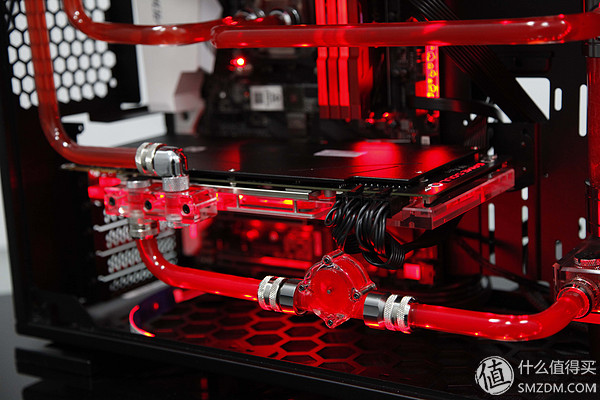

Light up! Machine renderings
Feel the effect came out, the red liquid with the fan, motherboard, memory, graphics lights, there is a tall wooden moment.
Still face is not put, to the Zhang chassis photos

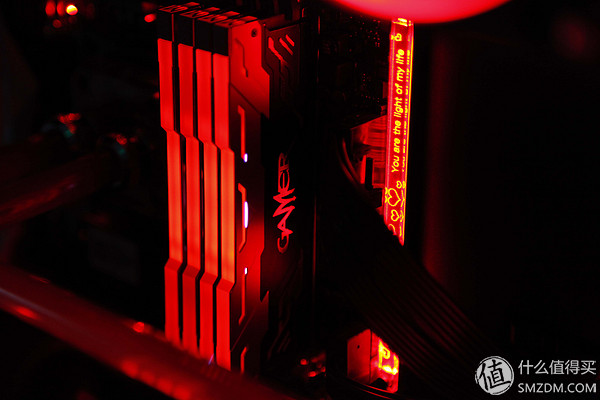

RAM
Video card

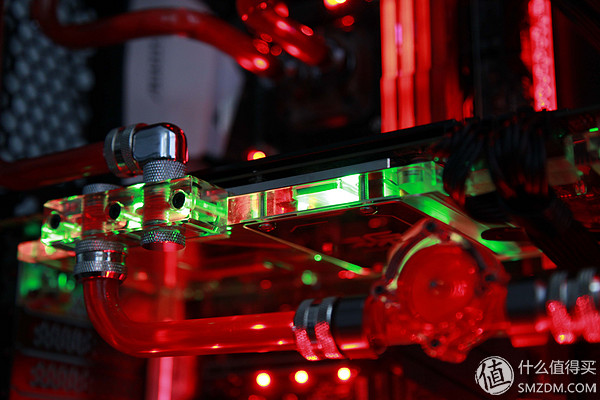

Graphics Card with Adjustable RGB Lights

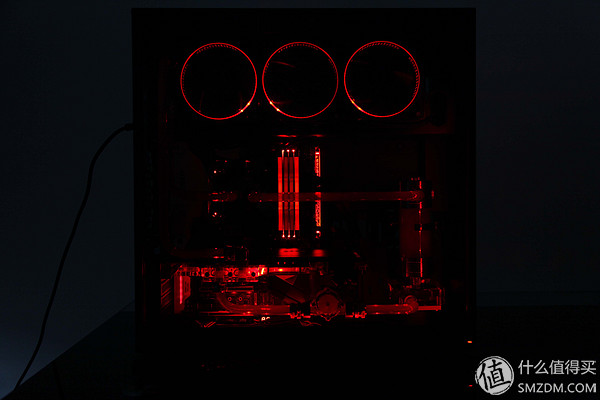

Turn off the light and cover the side plate
3DMark Fire Strike Test
Fire Strike Extreme test, good results

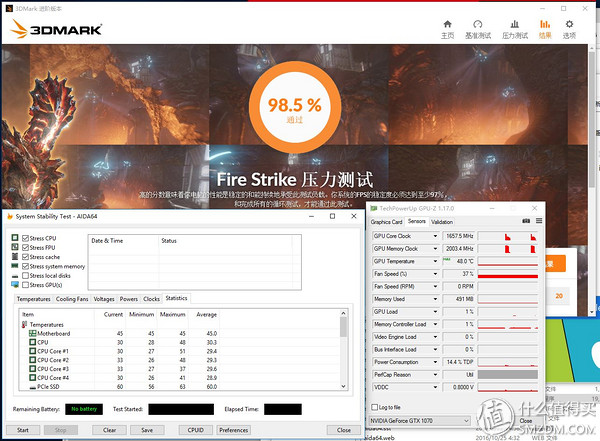

3DMark stability test, passed smoothly, temperature monitoring up to only 48 degrees
As far as the initial attempt was concerned, this achievement was very satisfactory. Although the waterway was relatively simple and the location of the pipe was slightly ambiguous, it was very happy that the machine had been fully installed.
In addition, DIY is really a very interesting thing. Here, for those players who want to try, if you are bold enough, let it go and try it out, and you will experience completely different pleasures than ordinary ones.
