High-power LED driver chip SN3350 application circuit

Excellent micro led manufacturers high power led lamp beads 1W green light Sanan 30mil chip

SMD LED

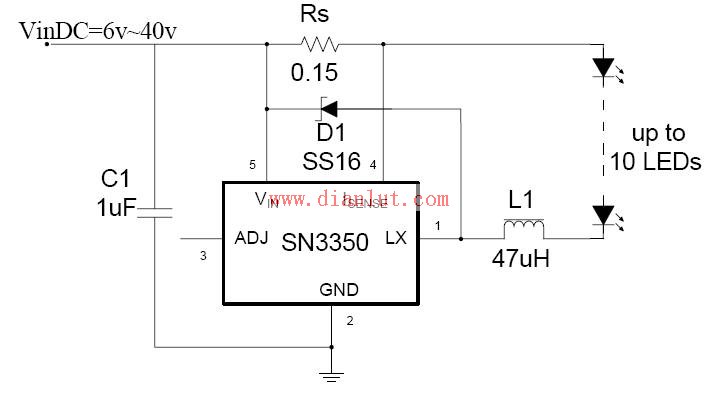

The following is the circuit diagram of [High Power LED Driver Chip SN3350 Application Circuit]

High-power LED driver chip SN3350, working voltage up to 40V, drive current capacity up to 700mA, can drive 10 single-lamp 3W LED.
SN3350 summarizes the advantages and disadvantages of similar products in the industry, and it is the terminator of LED driver in low and medium voltage range.
SN3350 advantages:

1, up to 40V working voltage, more safe and more adaptable.

2, current drive capacity 700mA, can load 1W or 3W LED.

3, the constant current effect is stable, not affected by voltage fluctuations.

4, peripheral devices are simple

5, the efficiency is extremely high, up to 95%.

6, over temperature protection and overcurrent protection, making the system more secure.

7, first-class price/performance ratio

8, international famous foundry processing and production, to ensure product quality.

The SN3350 is fully compatible with the ZXLD1350, ZXLD1360, PT4115, and the solution to replace the LM3402/LM3404 drive solution. More price and performance advantages.
