Lynx box how to use broadband cat PPPOE direct connection broadband

Lynx box, which is Lynx box. It is a very popular HD network set-top box and has become a common choice for millions of domestic families. The Lynx Box is a network high-definition set-top box jointly built by Alibaba's Tmall's famous smart TV box manufacturers TCL, Skyworth, and Zhuhai Maike Electronics. Through the "Tmall Box", users can watch high-definition movies, TVs, somatosensory games, popular large-scale 3D games, online shopping, pay for utilities, etc. on TV for free, and human-computer interaction from traditional PCs and mobile terminals. Moved to the living room to realize the concept of high-definition interconnection for future digital homes. Open up the Tmall Box to enjoy high-definition video, exclusive video games, high-quality music, high-quality children's education, and other content for you to start watching TV 2.0 era.

As a high-definition network set-top box, the network is indispensable, then, how does Lynx Box use PPPOE dial-up to directly connect broadband? This article uses the Lynx Box 1S+ as an example. Other Lynx Box settings are mostly different.

Broadband connection is essentially a wired network. It does not require wireless cats or wireless routers to provide WiFi support. It also does not require router support. It only requires one ADSL internet access device.

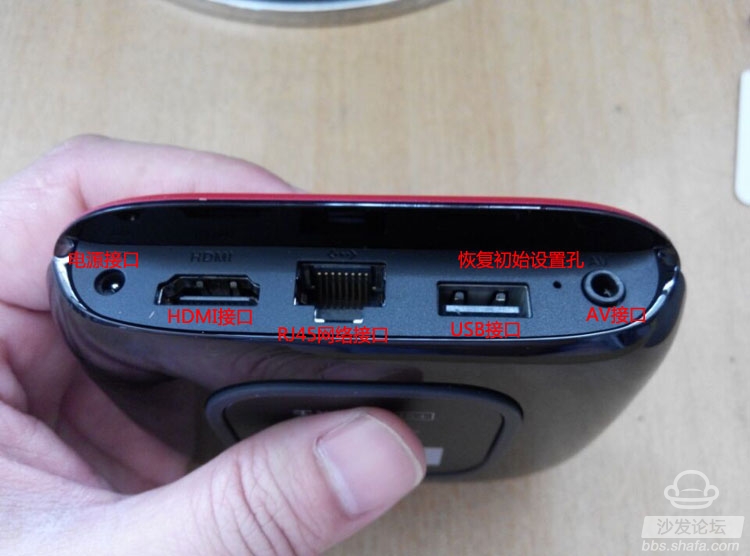

Extend the ADSL network device's cable head into the 1S+ RJ45 network interface to ensure it is plugged in.

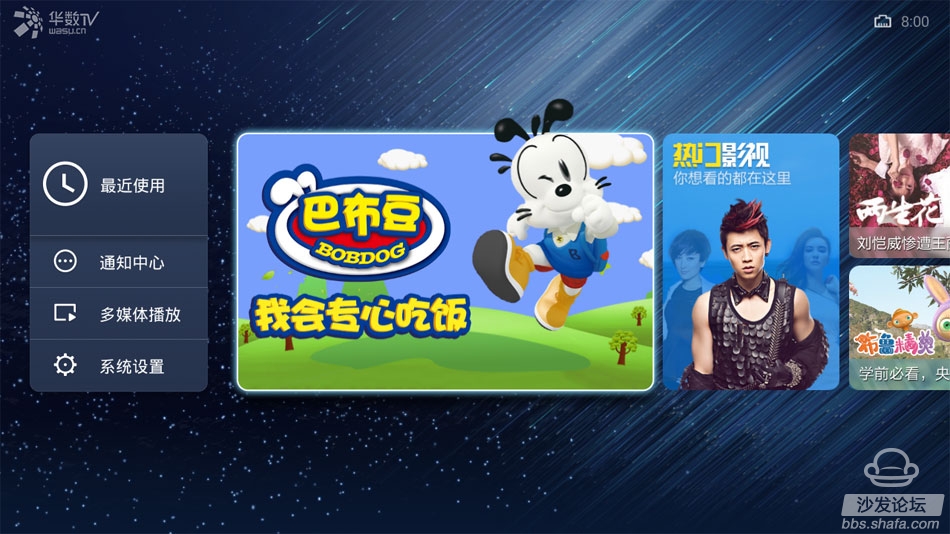

Turn on the power, turn on the TV, and after the TV shows the box interface, click on System Settings.


Enter system settings and select network settings.

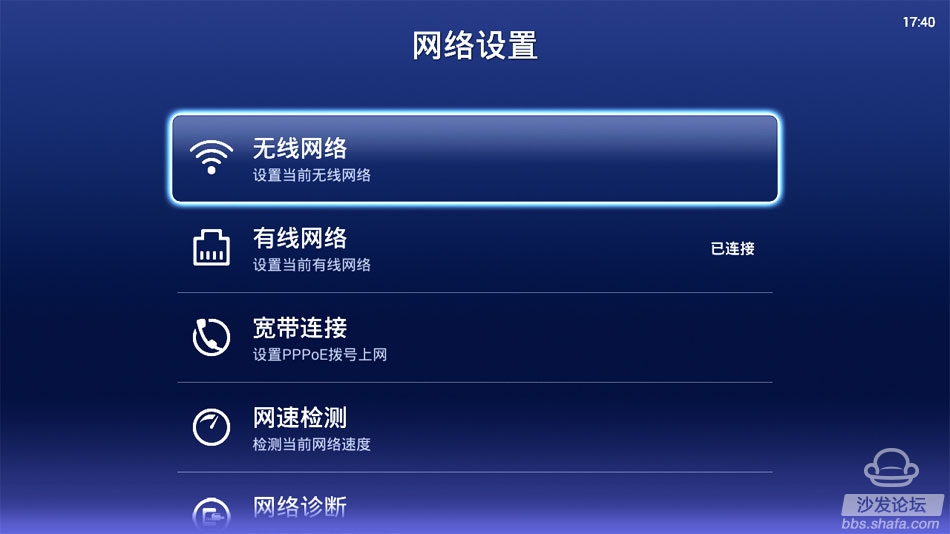

In the network settings, you can see that the Lynx Box 1S+ supports three connection modes: wireless network, wired network, and broadband connection, and broadband connection is selected.

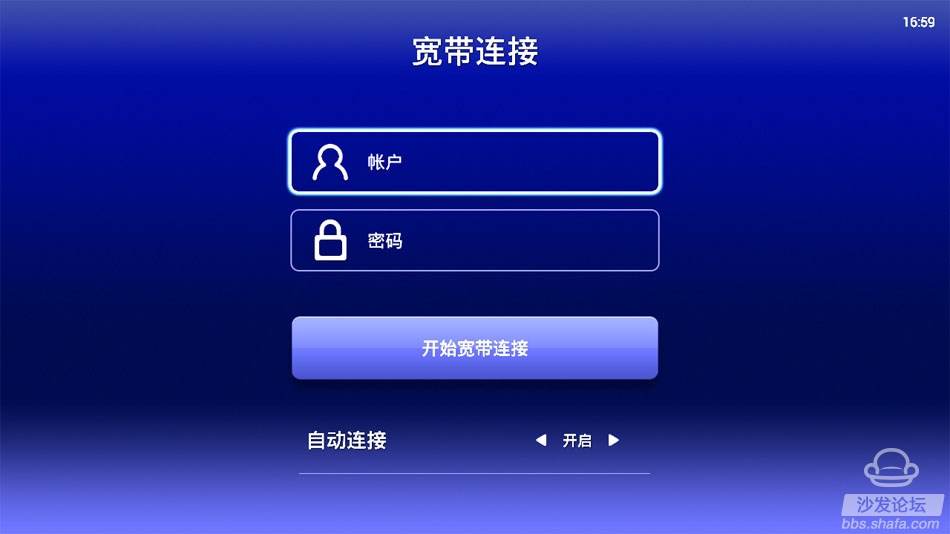

The above interface appears, enter the Internet account and password given when installing broadband, and click Start Broadband Connection. If the input is correct, wait for a while to see that the network connection is successful.
Here, it is recommended to turn on automatic connection.
