Water quality coliform enzyme substrate detection system:

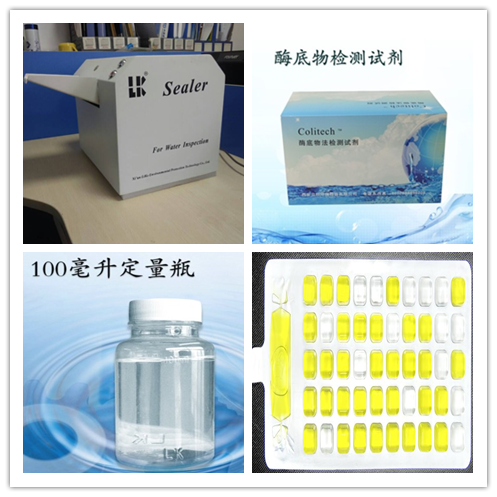

It consists of LK-2010 program-controlled quantitative sealing machine, 51 or 97-well quantitative detection tray, 100mL quantitative bottle and enzyme substrate detection reagent. Scope of water samples: drinking water, source water, bottled water, medium water, secondary water supply, pipe network water, wastewater, food water, livestock water, medical water, etc. The detection method uses Escherichia coli to produce a β-galactosidase-decomposing color source substrate-ONPG (Ortho-nitrophenyl-β-D-galactopyranoside) to make the culture solution yellow. Escherichia coli produces β-glucuronidase to decompose MUG (4-methyl-umbelliferyl-β-glucuronide) to fluoresce the culture medium at a wavelength of 366 nm to qualitatively quantify the total amount of water. Coliform, fecal coliform (heat-resistant coliform) and Escherichia coli. Serial number

Indicator name

Technical indicators

1

name

Program-controlled quantitative sealing machine

2

use

Used for

GB5750-2006

Enzyme substrate method for detection of total coliforms, Escherichia coli and fecal coliforms

3

reliability

No leakage

,

No holes

4

stability

Detectable

40,000

More than one sample, the service life is greater than

5

year

5

Convenience

open

/

Off and backspace

Quantitative digital display window

,

Have a cleaning window

6

Quickness

No need for a sterile room

, 24h

Detection of total coliforms in water

\

Escherichia coli

\

Heat-resistant coliform

7

weight

≤

16kg

8

size

39cm

long

X 27cm

width

X 30cm

high

9

Preheat time

≤

14min

10

noise

<50dba

11

Cover temperature

<40

o

C

12

Sealing speed

13

Operating Voltage

AC 220V

±

10

%

, 50H

Z

14

Sealing speed

51

hole,

97

Hole quantitative detection disk sealing time

≤

12

second

/

One

15

Working temperature

-10

o

C-50

o

C

16

examination range

Cooperate

51

Hole quantitative detection disk detection range

0-200MPN/100ml

(

Water sample is not diluted)

Cooperate

97

Hole quantitative detection disk detection range

0-2419MPN/100ml

(

Water sample is not diluted)

The detection method is a commonly used detection method in developed countries in the world. Compared with the standard detection methods in China, such as multi-tube fermentation and membrane method, the selective medium has the function of inhibiting bacteria and has low false positive. Quantitative and accurate. Because of the convenience and speed of the method, the efficiency can be improved and the detection time can be shortened in the routine testing of the laboratory, and the data can be timely reported in the emergency monitoring to avoid causing a large public safety accident.
